Home >> Dodge and Ram >> 2007 >> Nitro SLT, AWD >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0203 To P0406 >> P0330-Knock Sensor 2 Circuit >> Circuit Schematic

Circuit Schematic

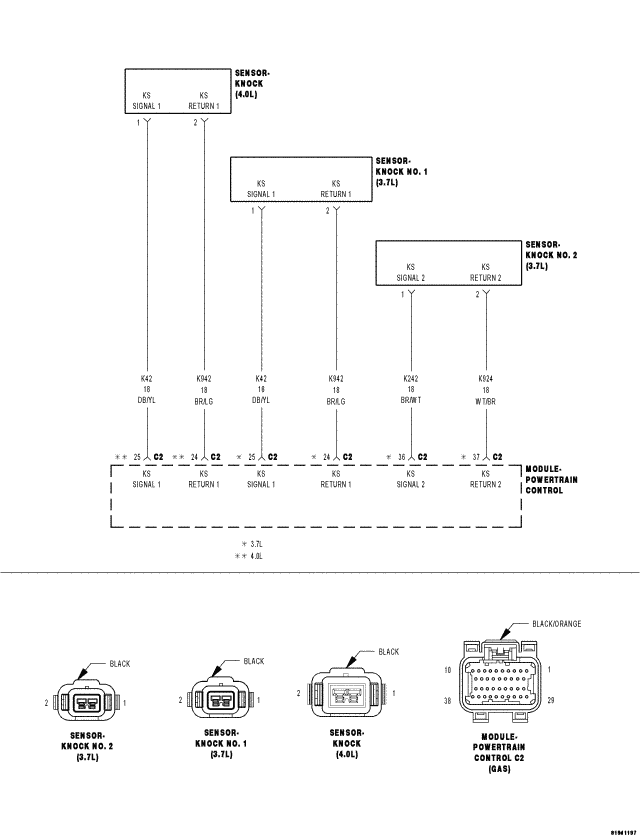

Fig 1: Knock Sensor 1/2 Circuit Schematic

GC0062127

Courtesy of CHRYSLER LLC
