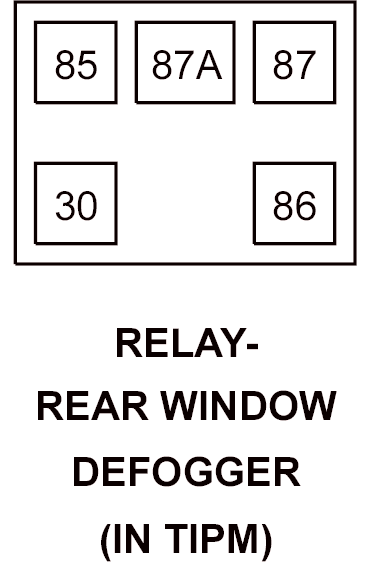

Rear Window Defogger Relay Connector End View
RELAY-REAR WINDOW DEFOGGER
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 30 |
INTERNAL |
B(+) |
| 85 |
INTERNAL |
B(+) |
| 86 |
INTERNAL |
REAR WINDOW DEFOGGER RELAY CONTROL |
| 87 |
INTERNAL |
REAR WINDOW DEFOGGER RELAY OUTPUT |
| 87A |
- |
- |
