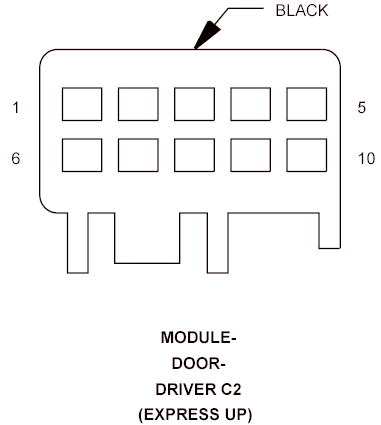

Driver Door Module (Express Up) Connector End View (C2)
MODULE-DOOR-DRIVER C2 - BLACK 10-WAY (EXPRESS UP)
| CAV | CIRCUIT | FUNCTION |
| 1 | P694 20LG/BL | DRIVER FOLDING MIRROR FOLD DRIVER |
| 2 | P691 20LG/YL | DRIVER FOLDING MIRROR UNFOLD DRIVER |
| 3 | C160 20DB | DRIVER MIRROR HEATER RETURN |
| 4 | C16 20DB/GY | DRIVER MIRROR HEATER DRIVER |
| 5 | - | - |
| 6 | P71 20TN/GY | DRIVER MIRROR VERTICAL DRIVER |
| 7 | P73 20TN/VT | DRIVER MIRROR COMMON DRIVER |
| 8 | P75 20TN/LG | DRIVER MIRROR HORIZONTAL DRIVER |
| 9 | - | - |
| 10 | - | - |
