Front Reading Lamp Connector End View

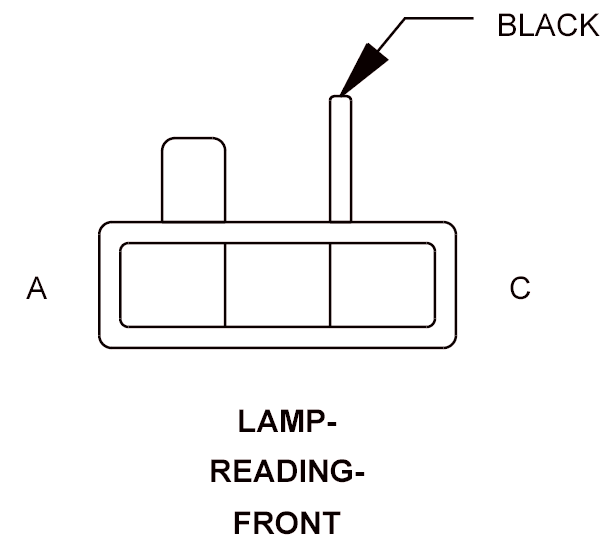

LAMP-READING-FRONT - BLACK 3-WAY

GKA780161Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
A M27 20YL/LB READING/RAIL LAMPS DRIVER
B Z919 20BK/DB GROUND
C M24 20YL/WT COURTESY LAMPS DRIVER
