Home >> Dodge and Ram >> 2007 >> Durango 3.7 K >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0645 To P1572 >> P0685-Auto Shutdown Relay Control Circuit >> Circuit Schematic

Circuit Schematic

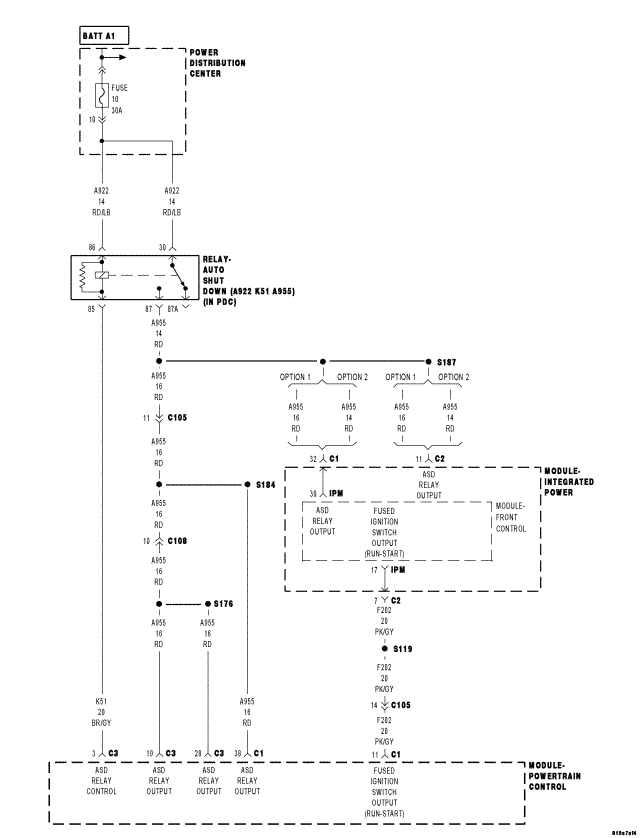

Fig 1: Auto Shutdown Relay Control Circuit Schematic

GC0058142

Courtesy of CHRYSLER LLC
