Diesel Engine

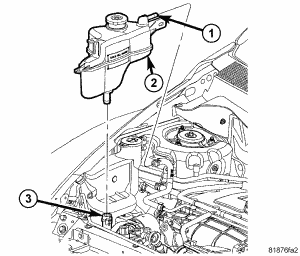

Fig 1: COOLANT CONTAINER - DIESEL ENGINE
GC0056962Courtesy of CHRYSLER LLC
1 - RETURN FITTING
2 - PRESSURE CONTAINER
3 - COOLANT HOSE
  1. Lower pressure container (2) into engine compartment and connect coolant hose (3) at bottom of pressure container (2).
  2. Position container (2) and install mounting bolts. Tighten to 3 N.m (40 lbs. in.).
  3. Connect coolant return hose to coolant recovery container (2).
  4. Refill cooling system. See STANDARD PROCEDURE .
