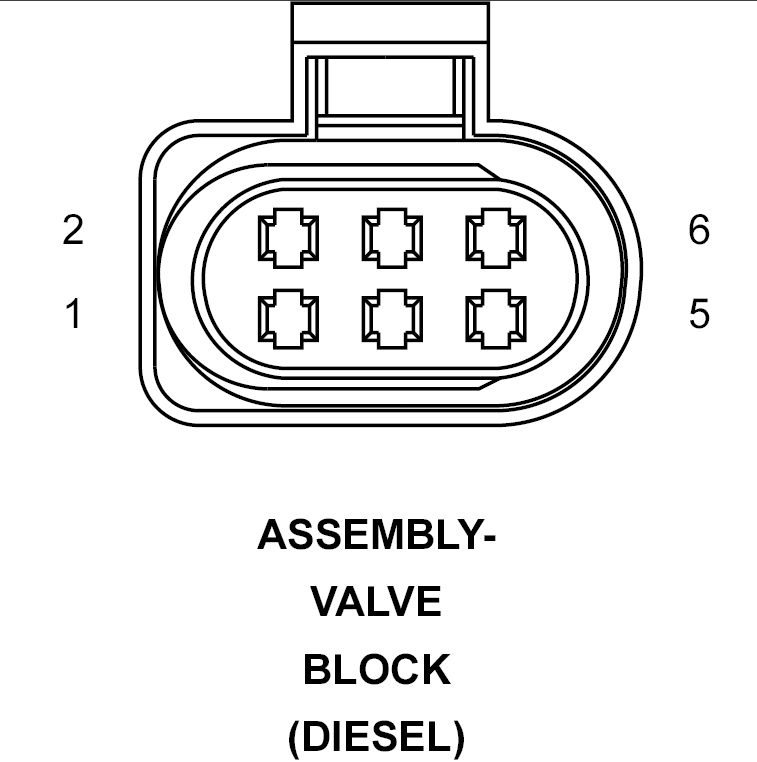

Valve Block Assembly (Diesel) Connector End View
ASSEMBLY-VALVE BLOCK - 6-WAY (DIESEL)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
F344 20BR/GY |
FUSED MAIN RELAY OUTPUT |
| 2 |
K53 20DB/LG |
EGR COOLER BYPASS CONTROL |
| 3 |
F344 20BR/GY |
FUSED MAIN RELAY OUTPUT |
| 4 |
F344 20BR/GY |
FUSED MAIN RELAY OUTPUT |
| 5 |
K137 20DB/OR |
BOOST PRESSURE CONTROL |
| 6 |
K35 20DB/VT |
EGR SOLENOID CONTROL |
