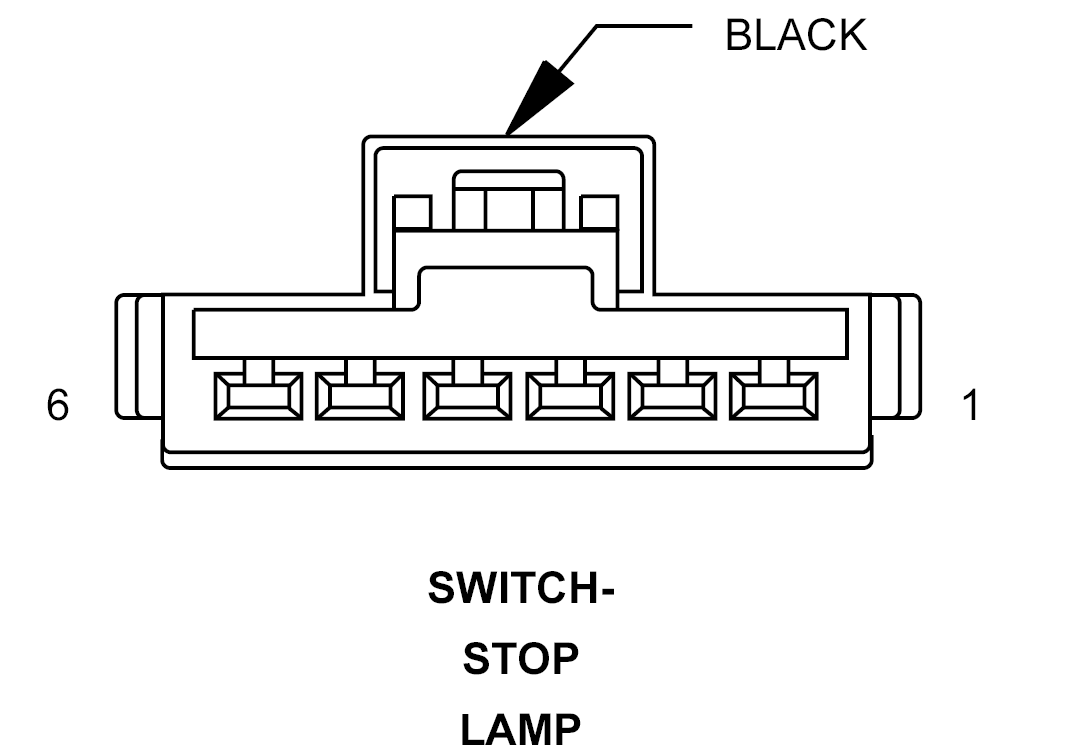

Stop Lamp Switch Connector End View
SWITCH-STOP LAMP - BLACK 6-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
A924 20DG/WT |
FUSED B(+) |
| 2 |
L53 20DG/WT |
STOP LAMP SWITCH OUTPUT |
| 3 |
F202 20PK/GY |
IGNITION SWITCH OUTPUT (RUN-START) |
| 4 |
B16 20LB/DG |
BRAKE SIGNAL 2 |
| 5 |
Z967 18BK/VT |
GROUND |
| 6 |
B15 20DG/WT |
BRAKE SIGNAL 1 |
