Right Side Impact Sensor 2 Connector End View

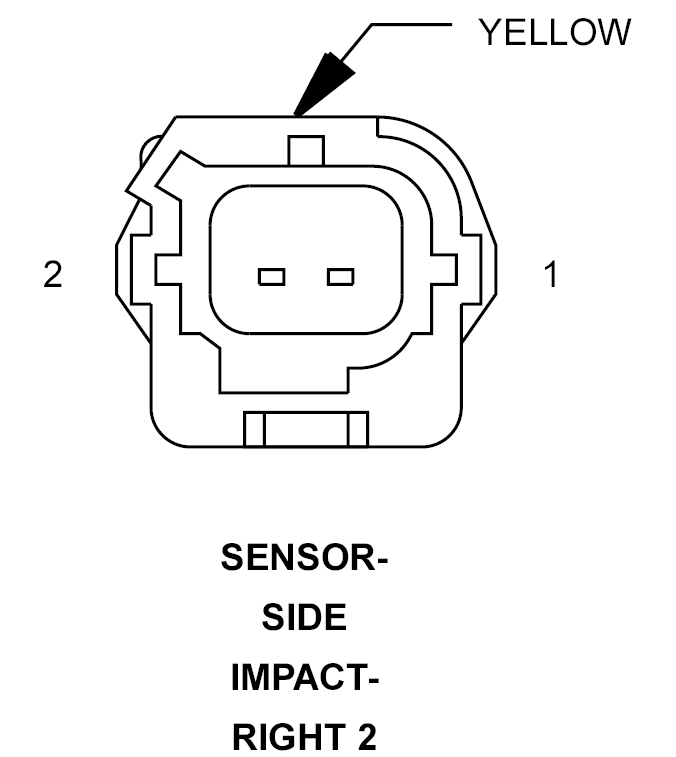

SENSOR-SIDE IMPACT-RIGHT 2 - YELLOW 2-WAY

GPM780266Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 R20 20WT/LG RIGHT SIDE IMPACT SENSOR 2 GROUND
2 R18 20LB/LG RIGHT SIDE IMPACT SENSOR 2 SIGNAL
