Left Front Window Motor Connector End View

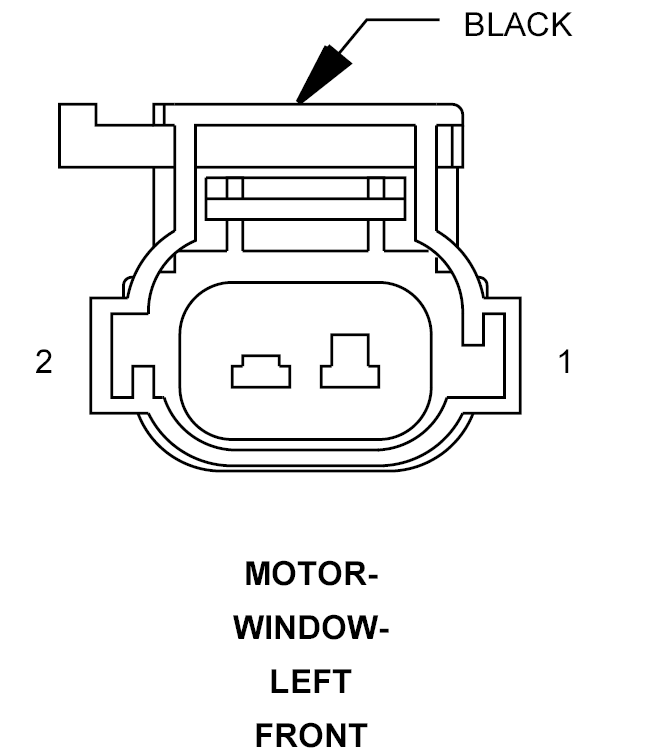

MOTOR-WINDOW-LEFT FRONT - BLACK 2-WAY

GPM780213Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 Q21 14OR/WT LEFT FRONT WINDOW DRIVER (DOWN)
2 Q11 14OR/LG LEFT FRONT WINDOW DRIVER (UP)
