Intake Air Temperature Sensor (Gas) Connector End View
Intake Air Temperature Sensor (Gas) Connector End View

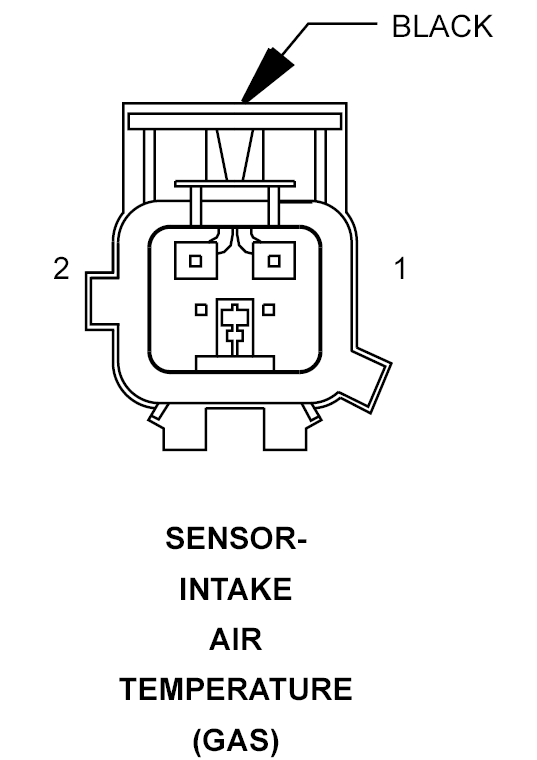

SENSOR-INTAKE AIR TEMPERATURE - BLACK 2-WAY (GAS)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
K21 20BK/RD
IAT SIGNAL
2
K915 20BR/WT
SENSOR GROUND
