Generator Side Starter Connector End View

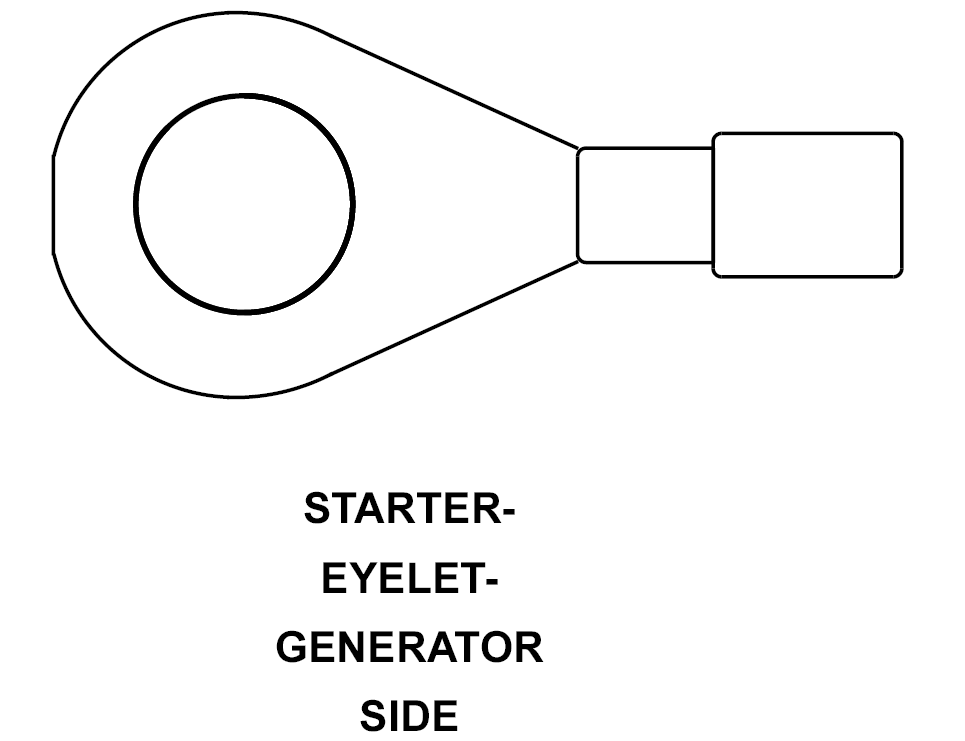

STARTER-EYELET-GENERATOR SIDE - 1-WAY

GPM780290Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 A802 8LB B(+) (DIESEL)
1 A802 10DG B(+) (GAS)
