Generator (Diesel) Connector End View

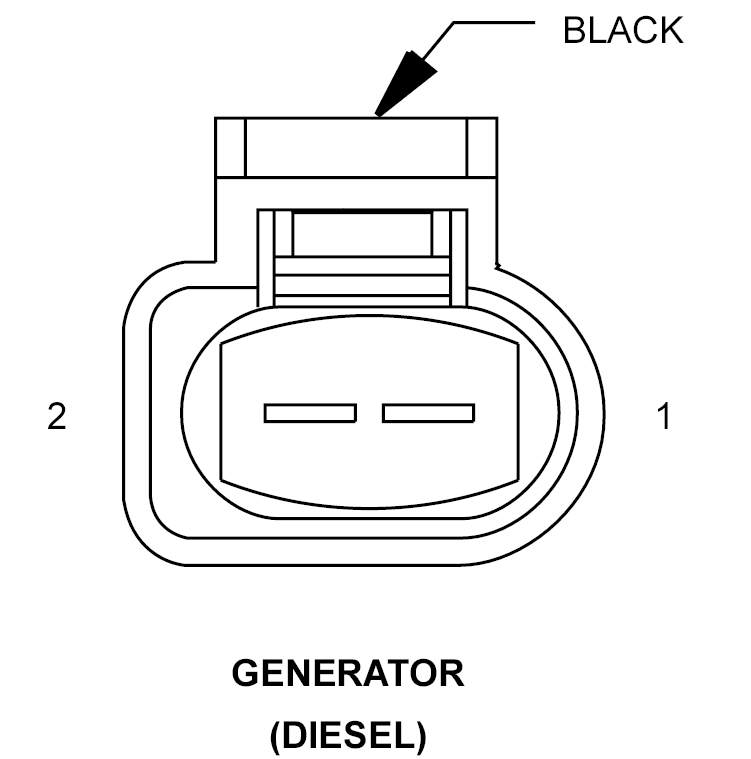

GENERATOR - BLACK 2-WAY (DIESEL)

GPM780096Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 G329 20VT/OR CHARGE INDICATOR SIGNAL
2 K92 20BR/YL GEN OUTPUT SIGNAL
