Fuel Temperature Sensor (Diesel) Connector End View
Fuel Temperature Sensor (Diesel) Connector End View

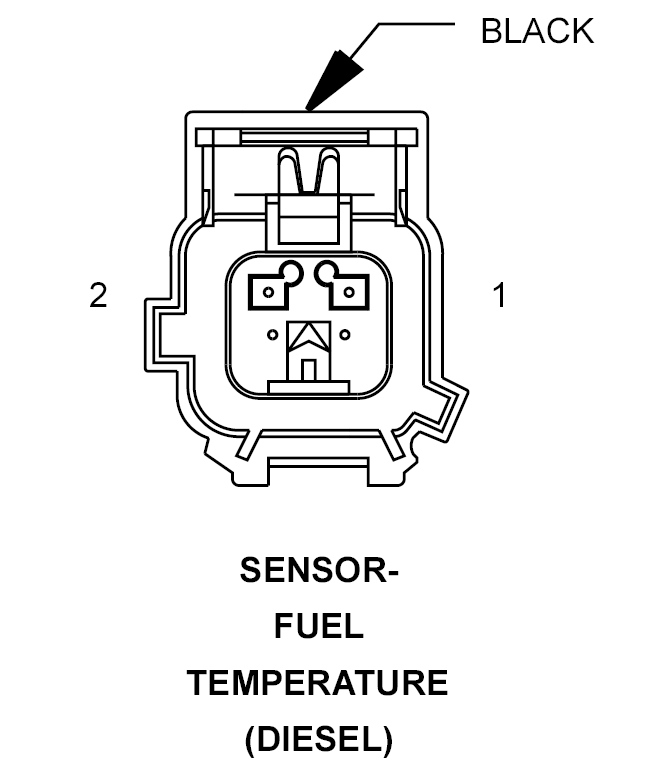

SENSOR-FUEL TEMPERATURE - BLACK 2-WAY (DIESEL)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
K900 20DB/DG
SENSOR GROUND
2
K156 20BR/YL
FUEL TEMPERATURE SENSOR SIGNAL
Courtesy of CHRYSLER CORP.
