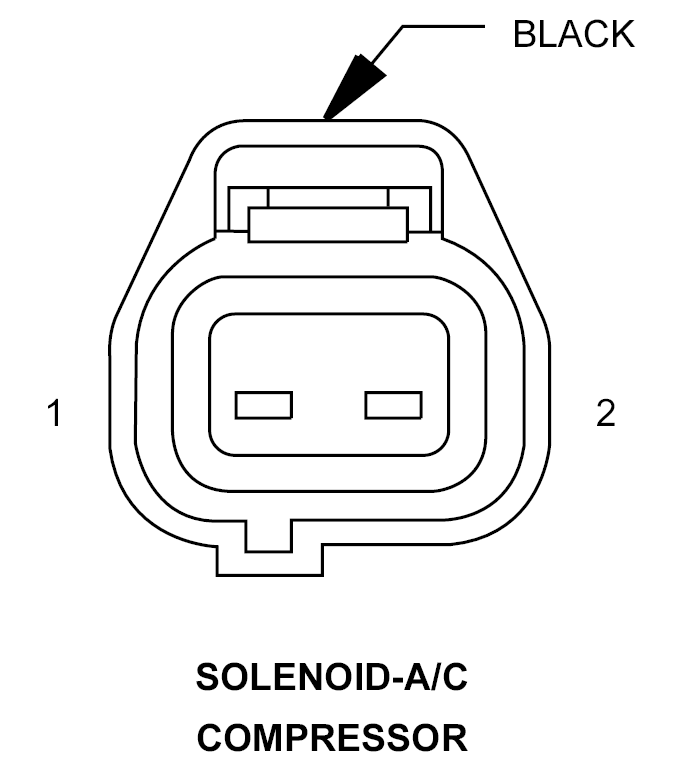

A/C Compressor Solenoid Connector End View
SOLENOID-A/C COMPRESSOR - BLACK 2-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
F343 20BR/YL |
FUSED MAIN RELAY OUTPUT (DIESEL) |
| 1 |
C27 20LB/WT |
A/C COMPRESSOR CONTROL (GAS) |
| 2 |
C27 20LB/WT |
A/C COMPRESSOR CONTROL (DIESEL) |
| 2 |
Z916 20BK |
GROUND (GAS) |
