Home >> Dodge and Ram >> 2007 >> Caliber R/T, AWD >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0513 To P0616 >> P0571-Brake Switch 1 Performance >> Circuit Schematic

Circuit Schematic

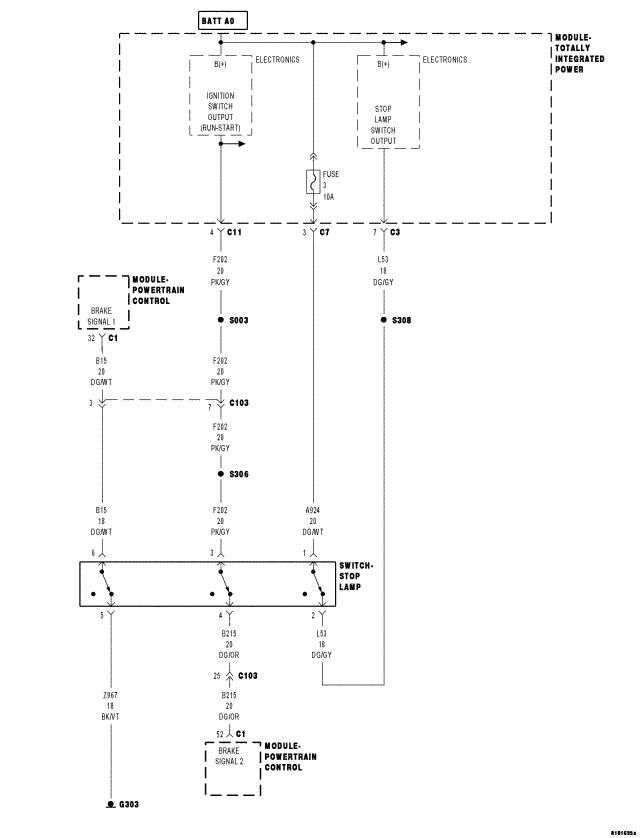

Fig 1: Brake Switch Circuit Schematic

GC0057103

Courtesy of CHRYSLER LLC
