Assembly-Instrument Panel Module: Installation

WARNING: On vehicles equipped with airbags, disable the airbag system before attempting any steering wheel, steering column, or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to take the proper precautions could result in accidental airbag deployment and possible personal injury or death.

NOTE: Left hand drive shown. Right hand drive similar.

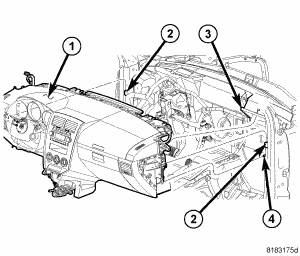

Fig 1: INSTRUMENT PANEL MOUNTING HANGER

Courtesy of CHRYSLER LLC

1. With the help of an assistant, load instrument panel into vehicle inserting stud (2) into dash and ensuring instrument panel hangs on reinforcement (2).
2. Install condensation drain tube into floor. Refer to REMOVAL .

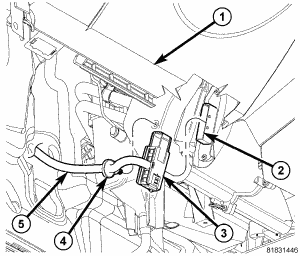

   Fig 2: HEATER CABIN

   Courtesy of CHRYSLER LLC
3. Connect HVAC wire harness (2).
4. Install 11 instrument panel to cowl panel fasteners. Tighten to 21 N.m (15 ft. lbs.).

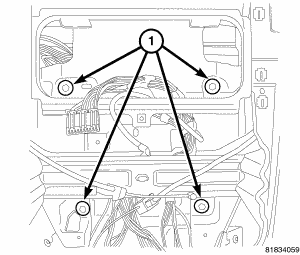

   Fig 3: CENTER BEZEL FASTENER LOCATIONS

   Courtesy of CHRYSLER LLC
5. Install four fasteners (1) behind center bezel and one behind glove box.
6. Install left and right floor ducts. Refer to REMOVAL .

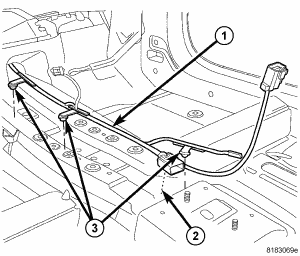

   Fig 4: I/P WIRE HARNESS

   Courtesy of CHRYSLER LLC
7. Connect instrument panel center console wiring harness.
8. Install left and right door scuff plate. See INSTALLATION .
9. Install lower B - Pillar trim panels. See INSTALLATION .
10. Install B - Pillar trim panels. See INSTALLATION .
11. Install Center console. See INSTALLATION .
12. Install left and right seats. See INSTALLATION .

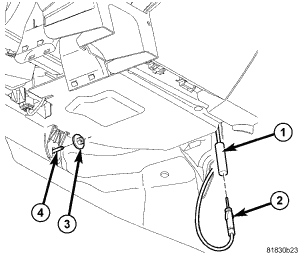

    Fig 5: I/P HARNESS

    Courtesy of CHRYSLER LLC
13. Connect radio harness (1) to antenna (2).
14. Install right cowl panel. See INSTALLATION .
15. Install glove box.

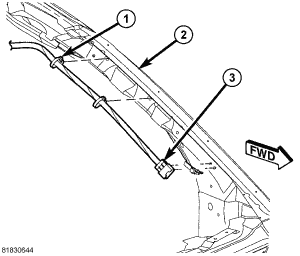

    Fig 6: A-PILLAR WIRE HARNESS

    Courtesy of CHRYSLER LLC
16. Connect A-Pillar (2) wiring harness (3).

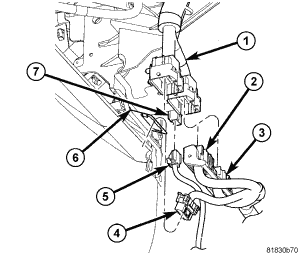

    Fig 7: I/P LOWER HARNESS

    Courtesy of CHRYSLER LLC
17. Connect instrument panel wiring harness (1) to (2) and (3), (7), and (5).
18. Install left cowl panel. See INSTALLATION .
19. Install Top Panel. See INSTALLATION .
20. Install left and right A - Pillar trim. See INSTALLATION .
21. Install shifter assembly.
22. Install center bezel. See REMOVAL .
23. Install center console shifter housing. See INSTALLATION .
24. Install manual or automatic shifter bezel. See INSTALLATION .
25. Connect steering column wire harness.
26. Connect steering column. Refer to INSTALLATION .
27. Install steering cover shrouds. See INSTALLATION .
28. If equipped, install left and right airbag covers.
29. Install left and right end caps. See INSTALLATION .
30. Connect the negative battery cable.
