Transmission Control Module C2 - Black

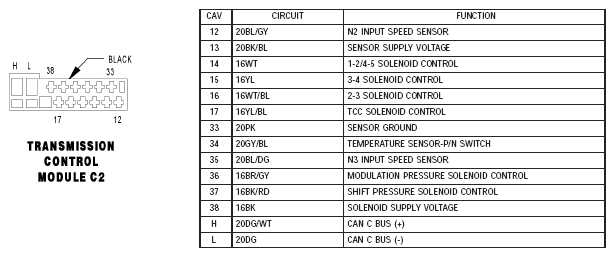

Fig 1: Identifying Transmission Control Module C2 Connector Pinouts

G04763035

Courtesy of CHRYSLER
