Circuit Schematic

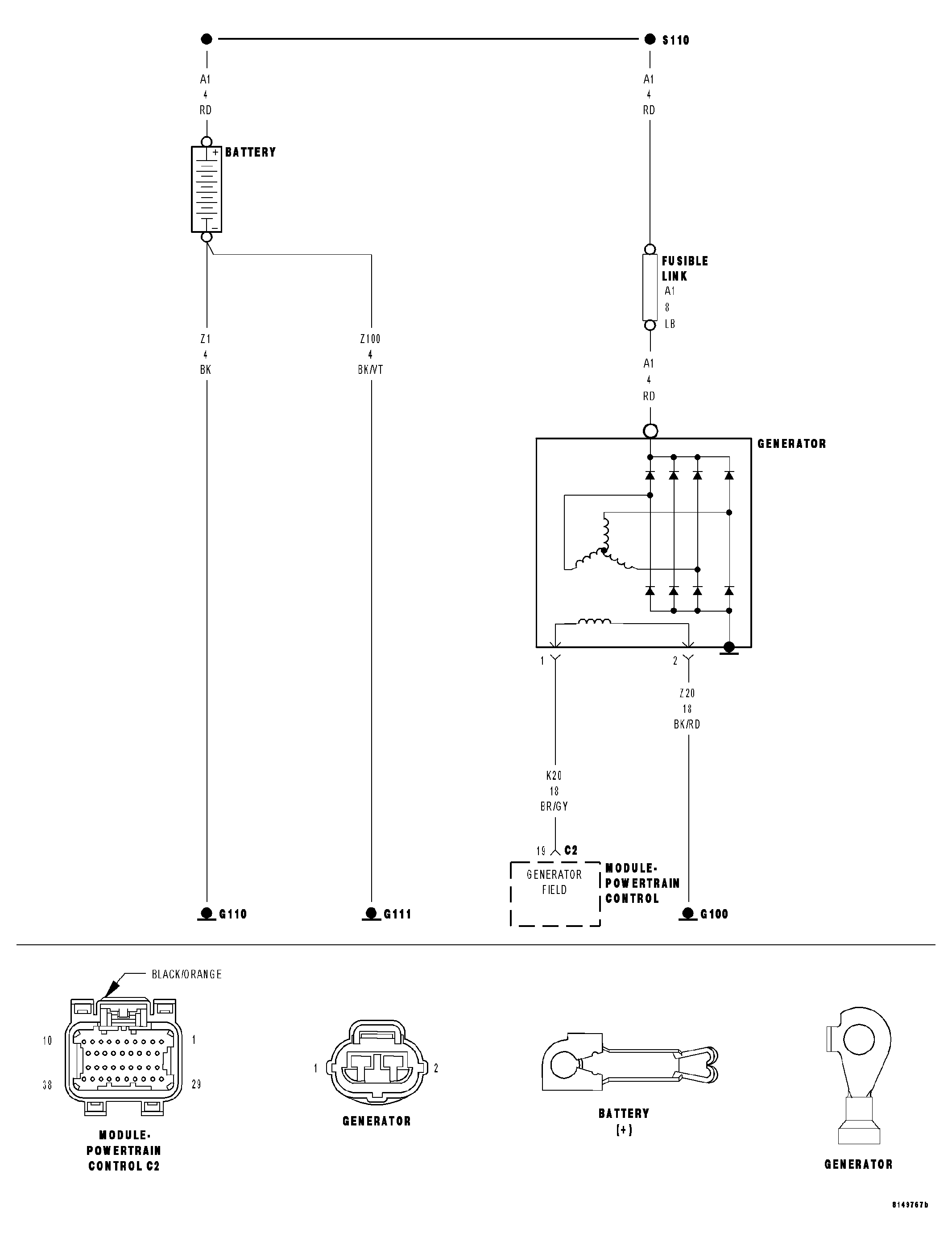

Fig 1: Charging System Circuit Schematic

GC0011607

Courtesy of DAIMLERCHRYSLER CORP.
