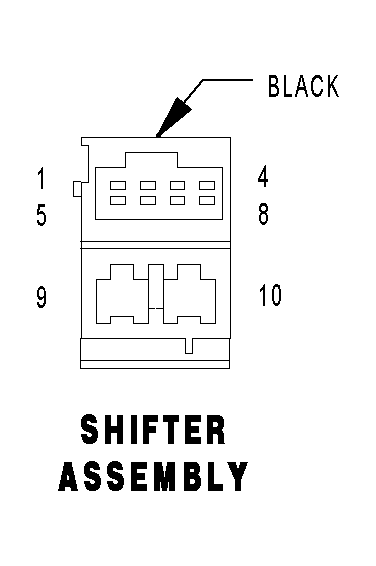

Shifter Assembly Connector End View
SHIFTER ASSEMBLY - BLACK
| CAV | CIRCUIT | FUNCTION |
| 1 | - | - |
| 2 | 20GY/DG/RD | LAMP DRIVER |
| 3 | 20BL/DG | K-ABS/SHIFTER ASSEMBLY |
| 4 | 18BR | GROUND |
| 5 | 20BK/BL/RD | BRAKE LAMP SWITCH |
| 6 | 20DG/WT | CAN C BUS (+) |
| 7 | 20DG | CAN C BUS (-) |
| 8 | 18BK/DG | TRANSMISSION RELAY OUTPUT |
| 9 | 16WT/BL/RD | FUSED IGNITION SWITCH OUTPUT (RUN-START) |
| 10 | 16WT/RD | BACK-UP LAMP |
