Instrument Panel Socket Connector End View

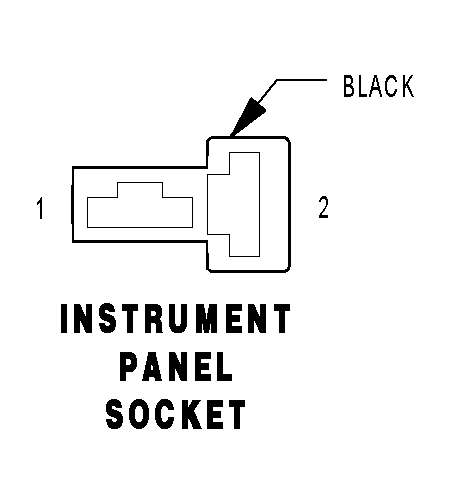

INSTRUMENT PANEL SOCKET - BLACK

GCVA580173Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 16BR GROUND
2 16RD FUSED B(+)
