Sentry Key Remote Entry Module (SKREEM)

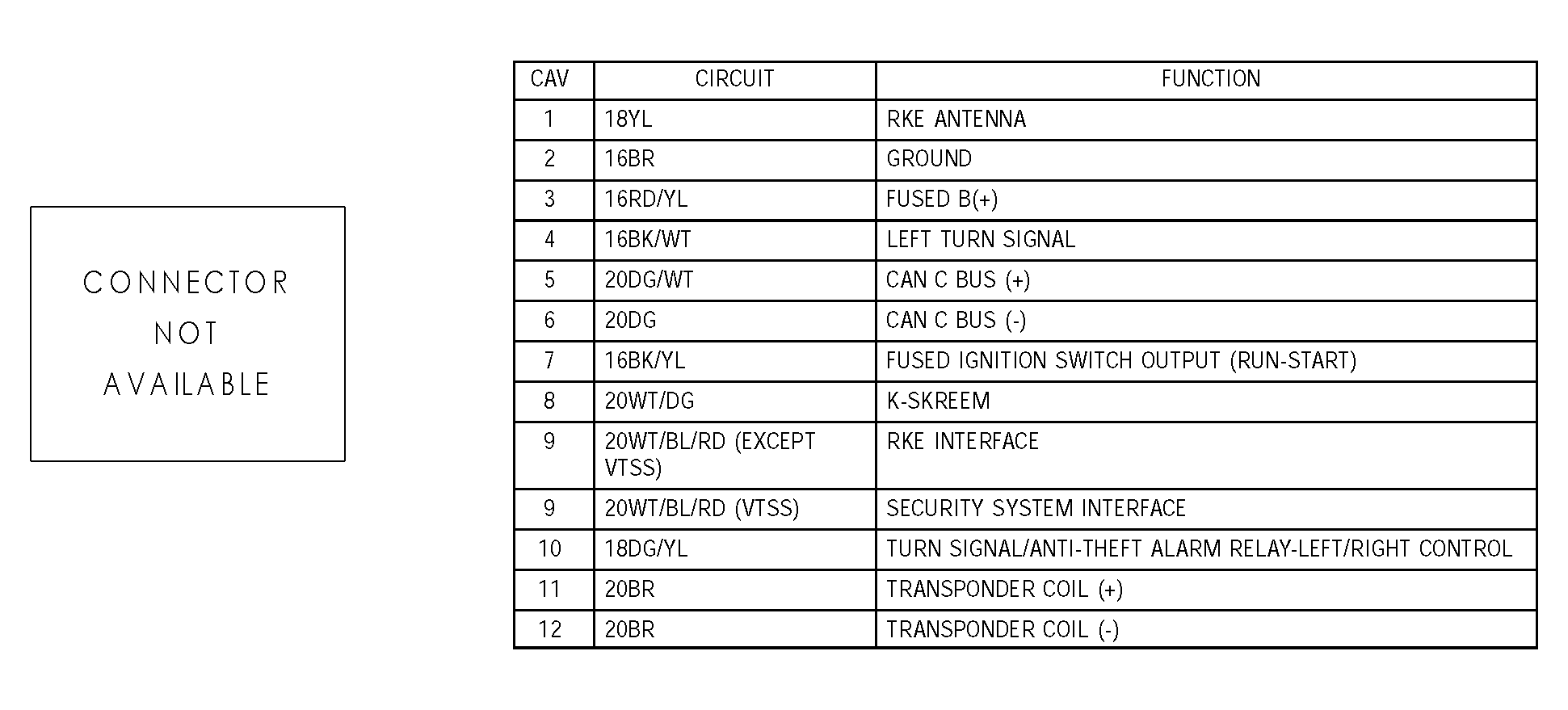

Fig 1: Identifying Sentry Key Remote Entry Module (SKREEM)

G04536761

Courtesy of DAIMLERCHRYSLER CORP.
