Security System Module C2 - LT. Green

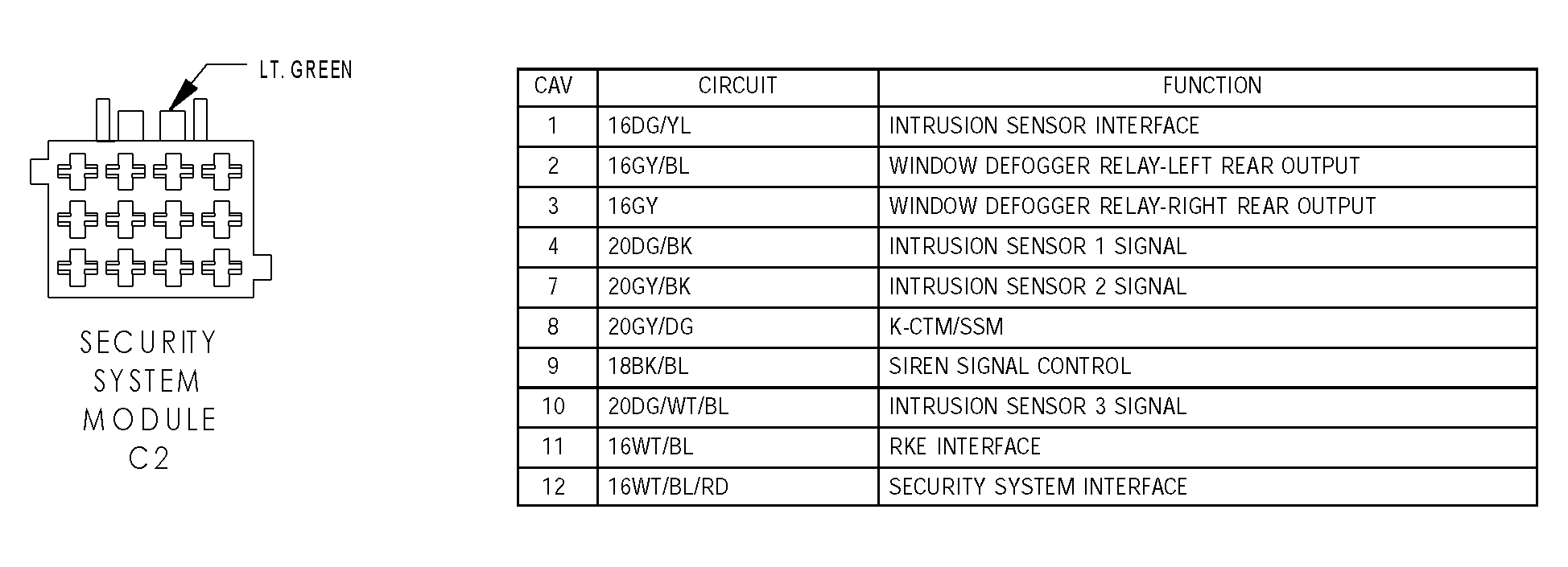

Fig 1: Identifying Security System Module C2 - Lt. Green Connector Pinouts

G04536760

Courtesy of DAIMLERCHRYSLER CORP.
