Security System Module C1 - Brown

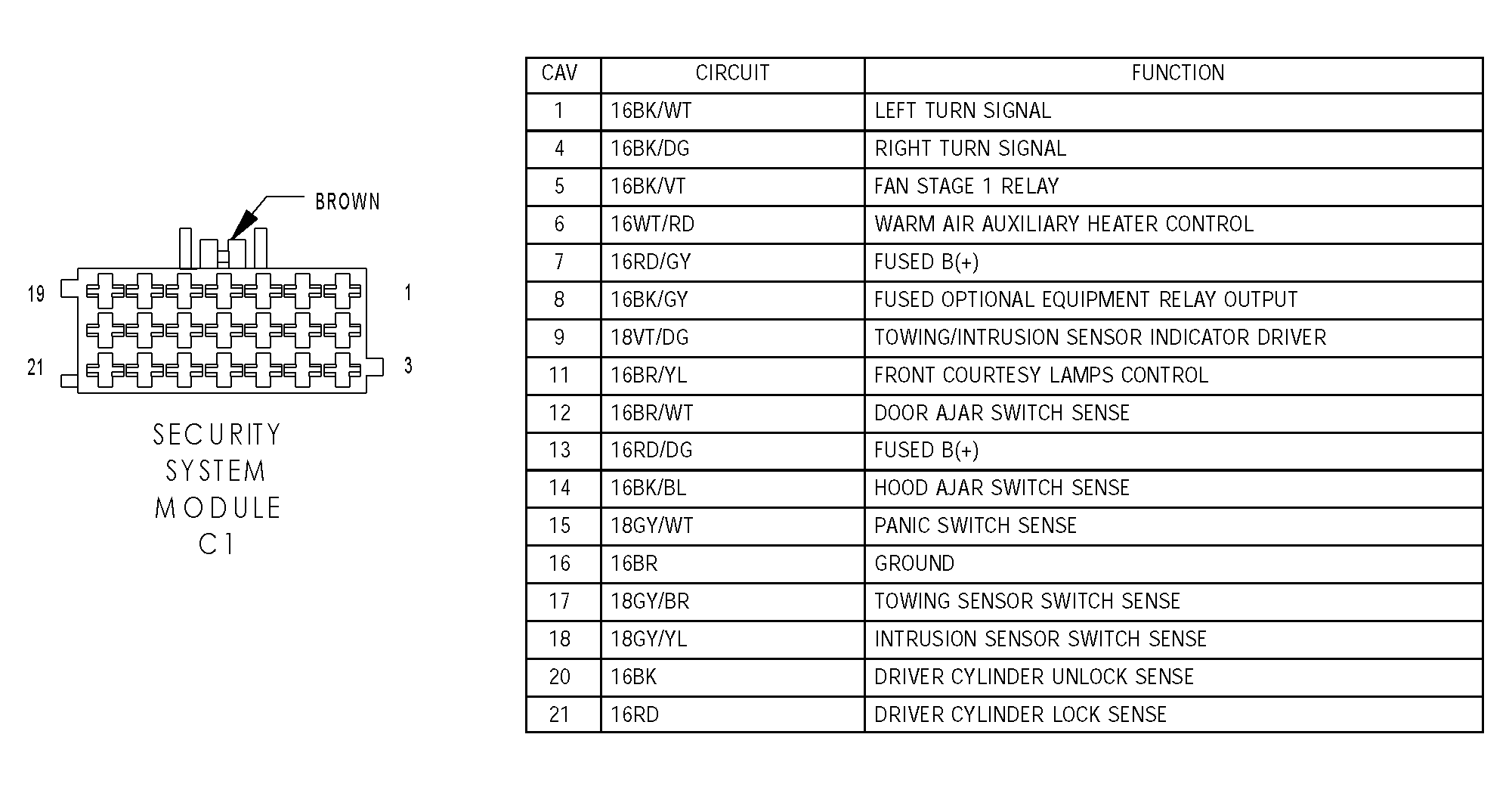

Fig 1: Identifying Security System Module C1 - Brown Connector Pinouts

G04536759

Courtesy of DAIMLERCHRYSLER CORP.
