Engine Control Module C2 - Black

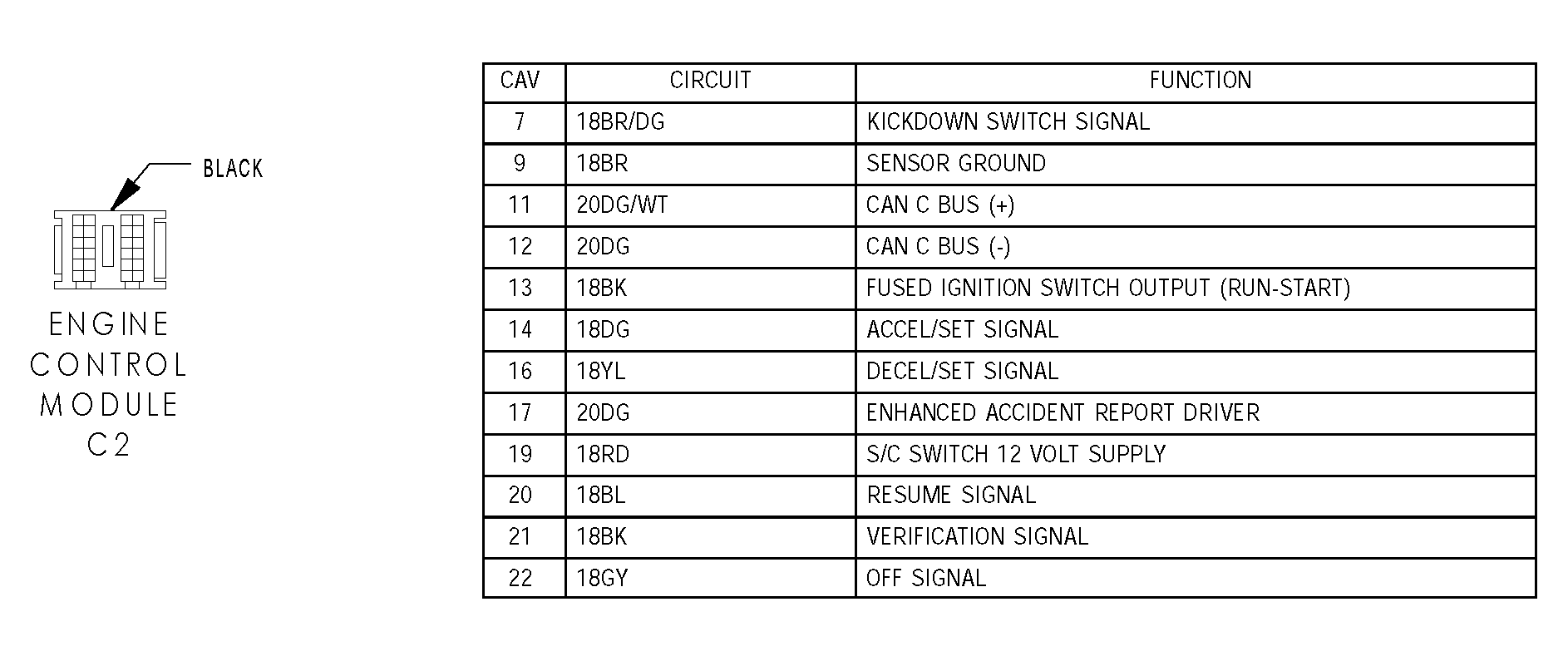

Fig 1: Identifying Engine Control Module C2 - Black Connector Pinouts

G04536736

Courtesy of DAIMLERCHRYSLER CORP.
