Door Lock Motor/Ajar Switch Assembly-Rear C2

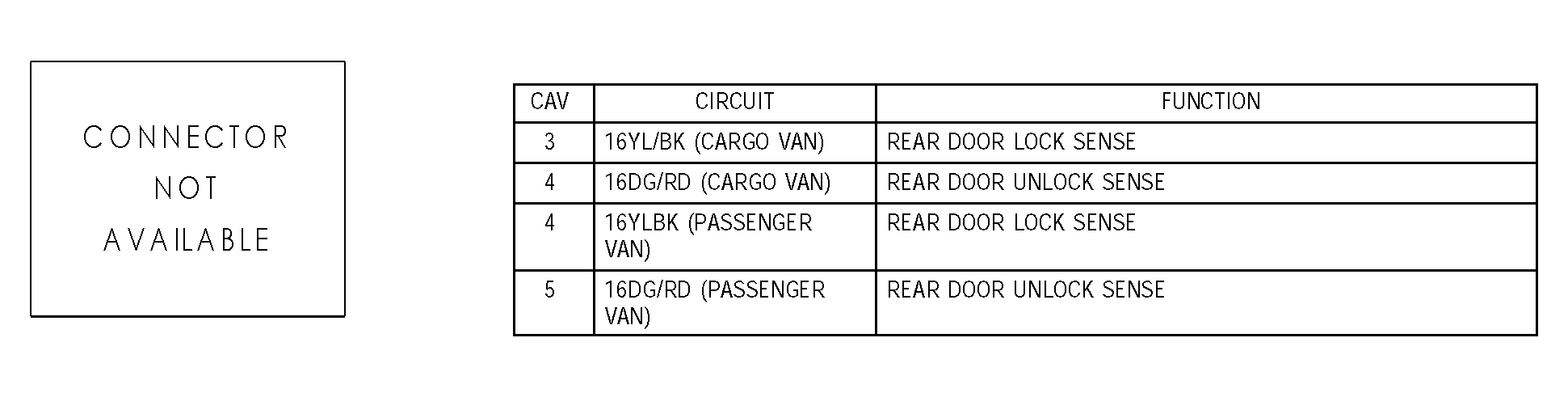

Fig 1: Identifying Door Lock Motor/Ajar Switch Assembly-Rear C2

G04536732

Courtesy of DAIMLERCHRYSLER CORP.
