Airbag Control Module - Yellow

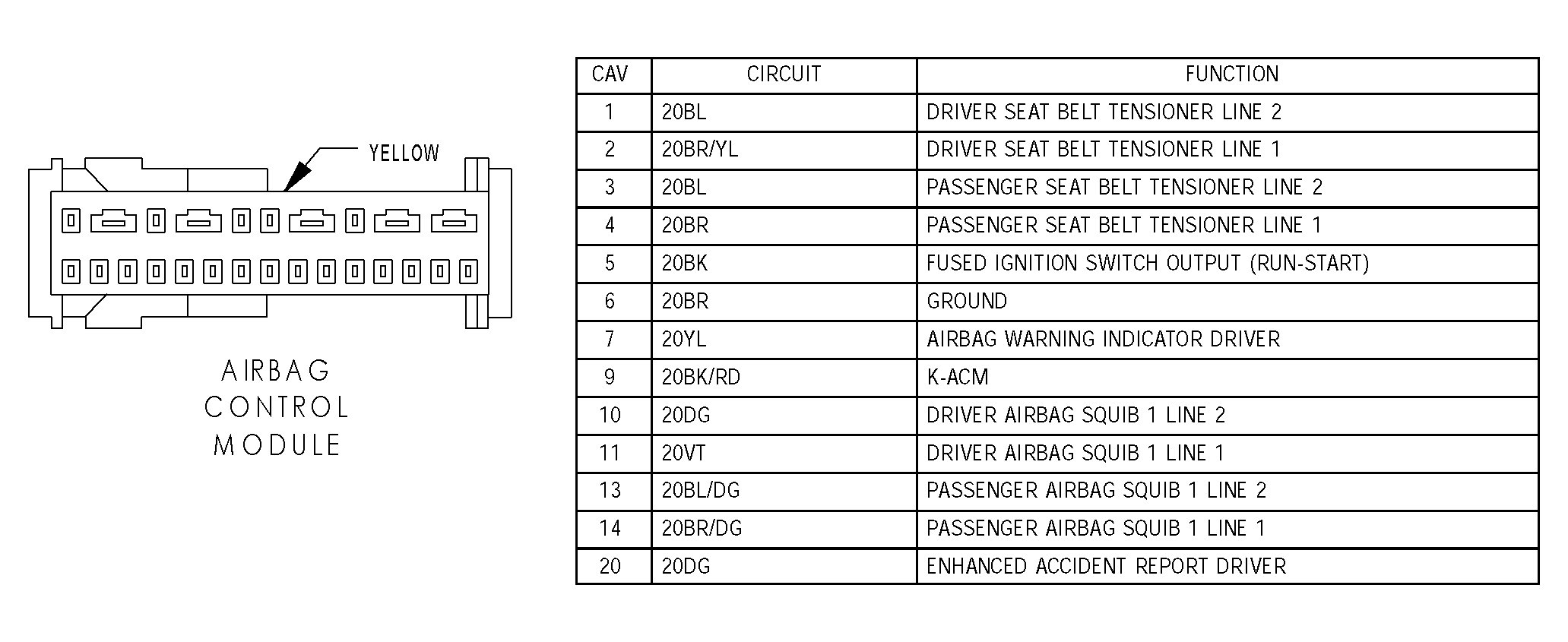

Fig 1: Identifying Airbag Control Module - Yellow Connector Pinouts

G04536704

Courtesy of DAIMLERCHRYSLER CORP.
