EVAP Temp Sensor Resistance To Temperature Specifications
EVAP Temp Sensor Resistance To Temperature Specifications

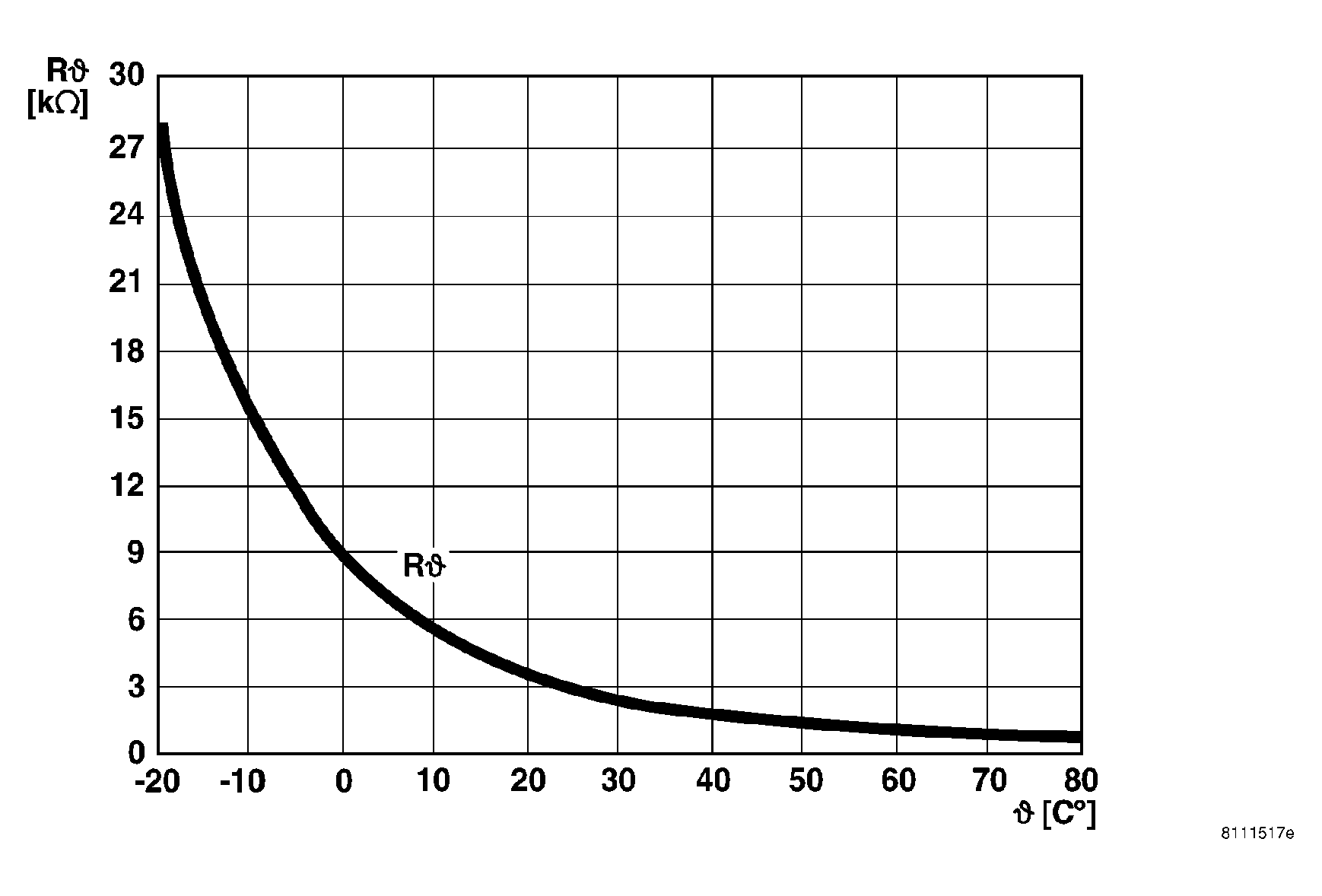

Fig 1: EVAP Temp Sensor Resistance To Temperature Specifications Graph
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
