Emergency Release Cable: Removal

  1. Remove the decklid cover. (Refer to BODY/DECKLID/HATCH/LIFTGATE/TAILGATE/COVER - REMOVAL)
  2. Unclip cable and handle assembly. See Fig 1.

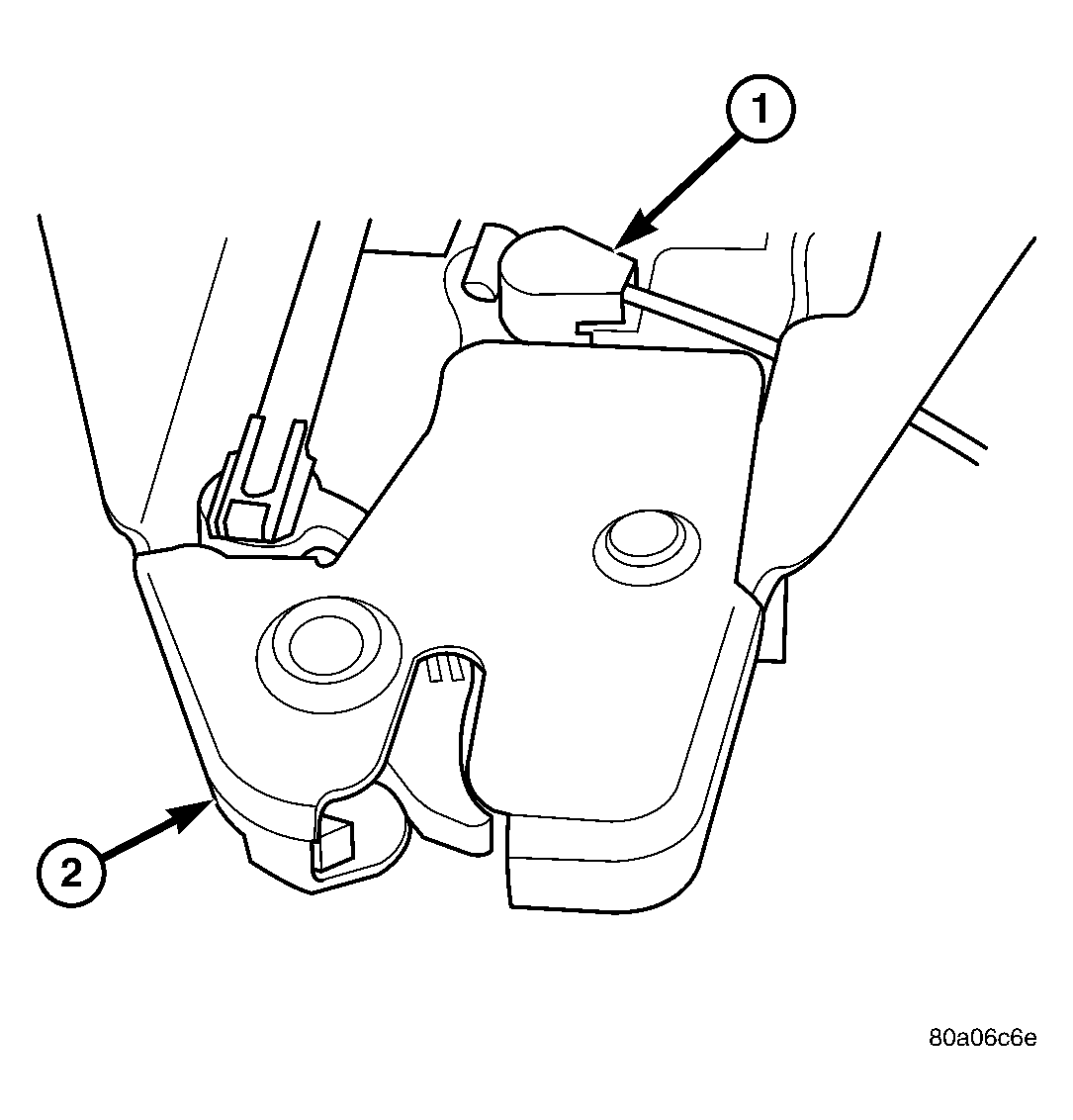

Fig 1: EMERGENCY RELEASE CABLE - TYPICAL
GC0020711Courtesy of DAIMLERCHRYSLER CORP.
1 - Release Cable Clip
2 - Decklid Latch
