Remote Keyless Entry Module - Black 26 Way

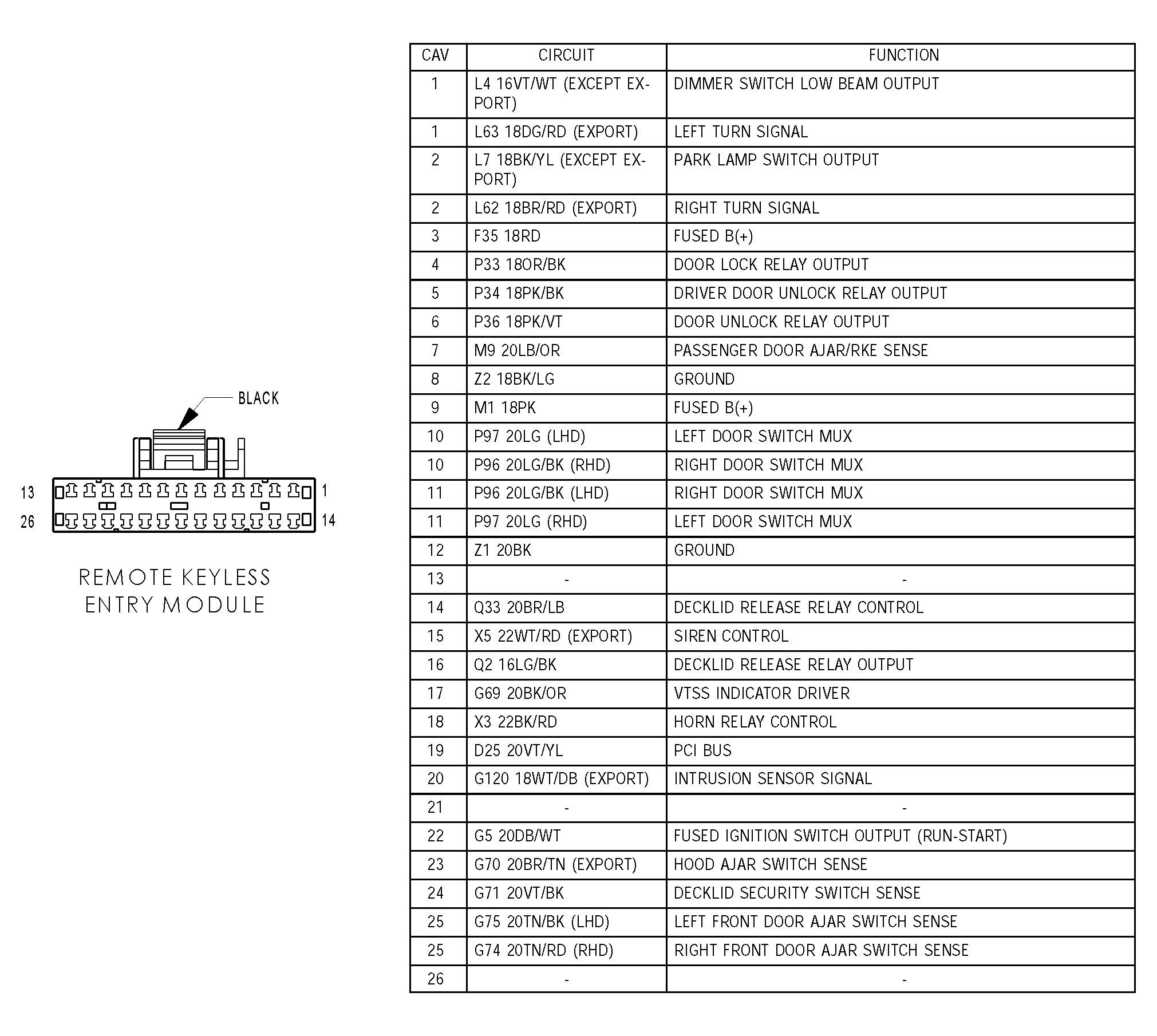

Fig 1: Identifying Remote Keyless Entry Module Connector Pinouts - Black 26 Way

G04549829

Courtesy of DAIMLERCHRYSLER CORP.
