Seat Belt Buckle: Installation: Front
WARNING:
To avoid personal injury or death, on vehicles equipped with airbags, disable the supplemental restraint system before attempting any steering wheel, steering column, airbag, occupant classification system, seat belt tensioner, impact sensor, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the supplemental restraint system. Failure to take the proper precautions could result in accidental airbag deployment.
WARNING:
To avoid personal injury or death, during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or inoperative buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or faulty seat belt and child restraint components with the correct, new and unused replacement parts listed in the DaimlerChrysler Mopar Parts Catalog.

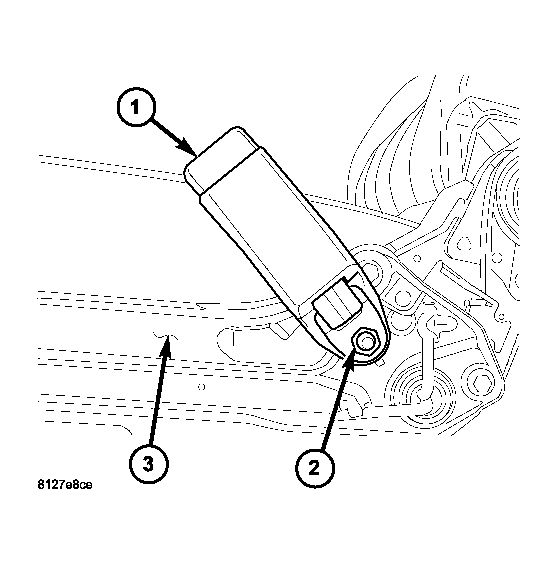

- Position the front seat belt buckle lower anchor (1) onto the stud near the rear of the inboard seat cushion frame (3). Be certain the anti-rotation tab on the anchor is engaged in the clearance hole of the frame.
- Install and tighten the nut (2) that secures the anchor to the frame. Tighten the nut to 43 N.m (32 ft. lbs.).
- Position the seat cushion side shield to the inboard seat cushion frame.
- Install and tighten the screws that secure the shield to the frame. Tighten the screws to 1 N.m (9 in. lbs.).
- Reinstall the front seat and seat track to the floor panel as a unit. (Refer to BODY/SEATS/SEAT - FRONT - INSTALLATION) .
- Do not reconnect the battery negative cable at this time. The supplemental restraint system verification test procedure should be performed following service of any supplemental restraint system component. (Refer to ELECTRICAL/RESTRAINTS - STANDARD PROCEDURE - VERIFICATION TEST) .
- On the passenger side only, following successful completion of the supplemental restraint system verification test procedure, perform the Occupant Classification System Verification Test using a diagnostic scan tool. Refer to the appropriate diagnostic procedures.
