Circuit Schematic

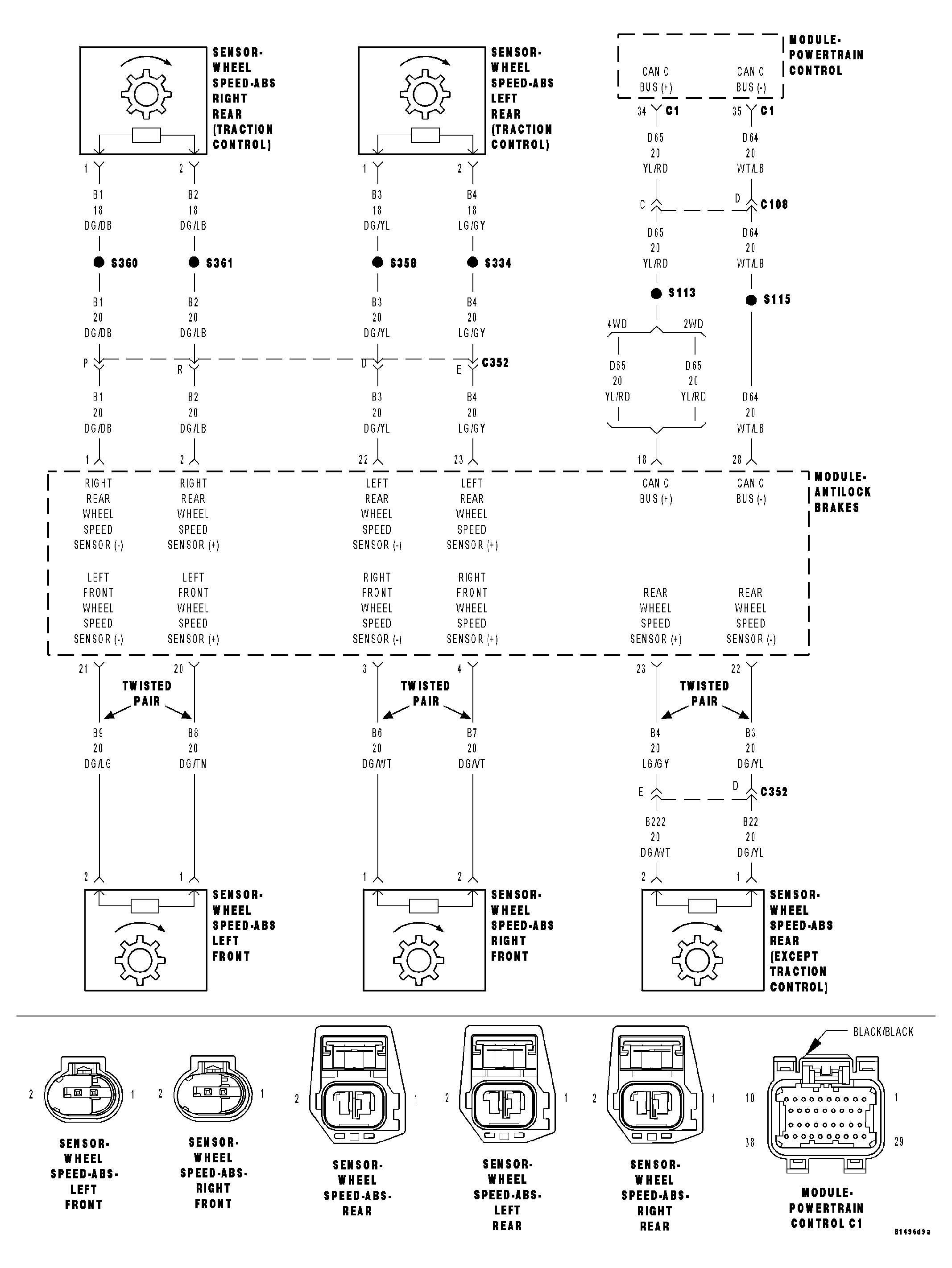

Fig 1: Vehicle Speed Sensor Circuit Schematic

GC0011594

Courtesy of DAIMLERCHRYSLER CORP.
