Diagnosis And Testing - Traction Control Switch

  1. Remove lower steering column shroud. (Refer to STEERING/COLUMN/LOWER SHROUD - REMOVAL)

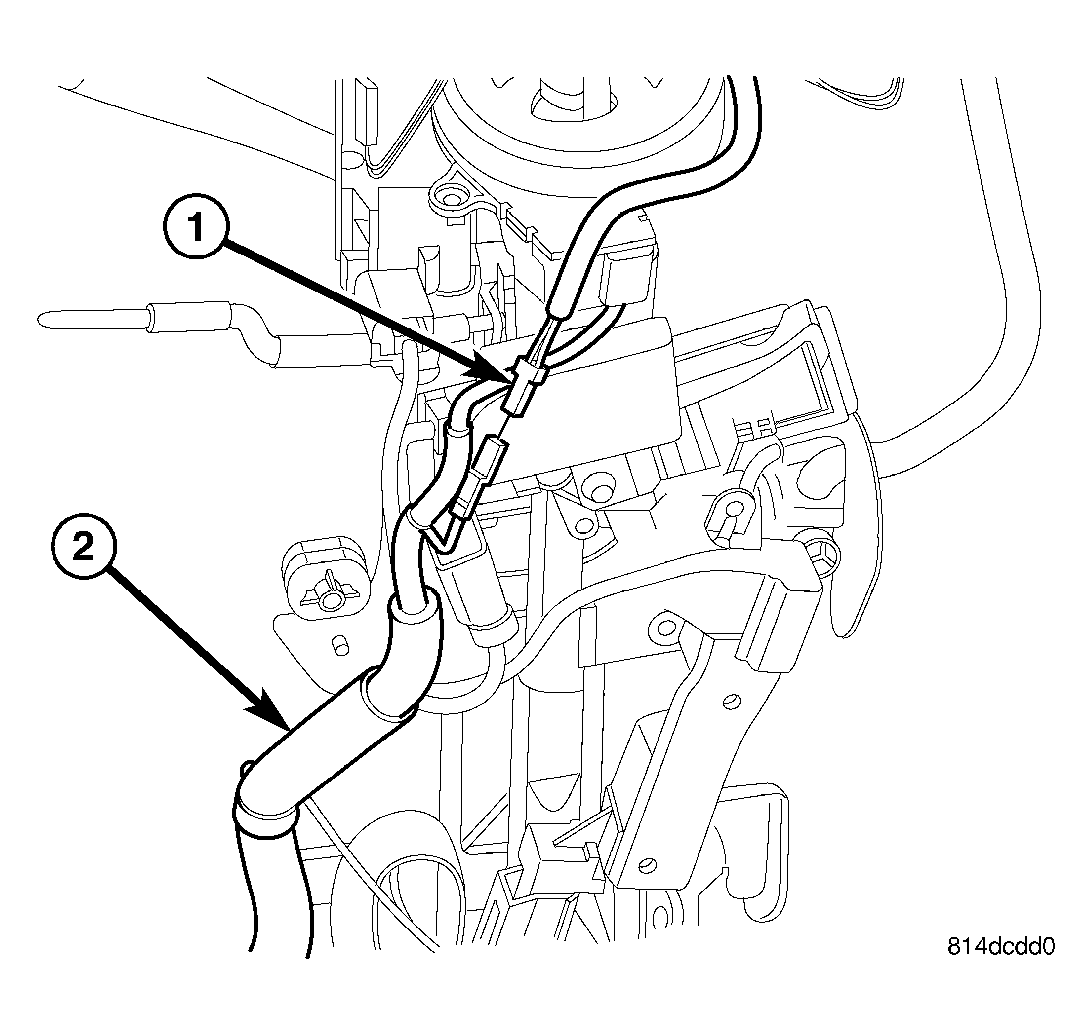

    Fig 1: Traction Control Wiring Connection
    GC0023270Courtesy of DAIMLERCHRYSLER CORP.
    1 - TRACTION CONTROL WIRING CONNECTOR
    2 - COLUMN WIRING HARNESS
  2. Disconnect traction control switch harness from column harness. See Fig 1.
  3. Using an ohmmeter, check for continuity between pins 1 and 2. With the switch actuated, there should be continuity between the two pins. With the switch off, there should be no continuity.
