Body Verification Test VER-1

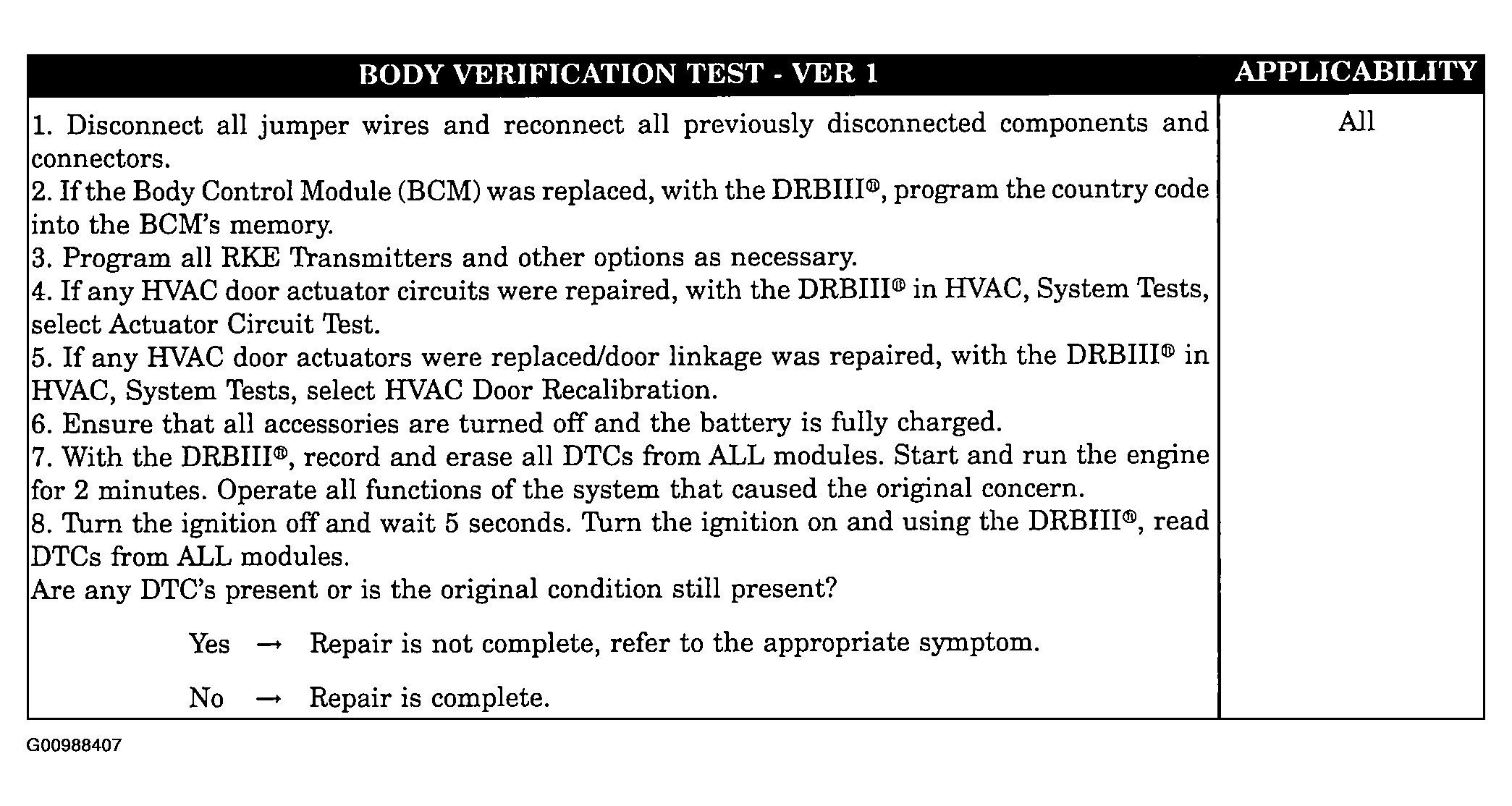

Fig 1: Body Verification Test VER-1 Chart

G00988407

Courtesy of DAIMLERCHRYSLER CORP.
