Engine Coolant Temperature Sensor - Black 2 Way

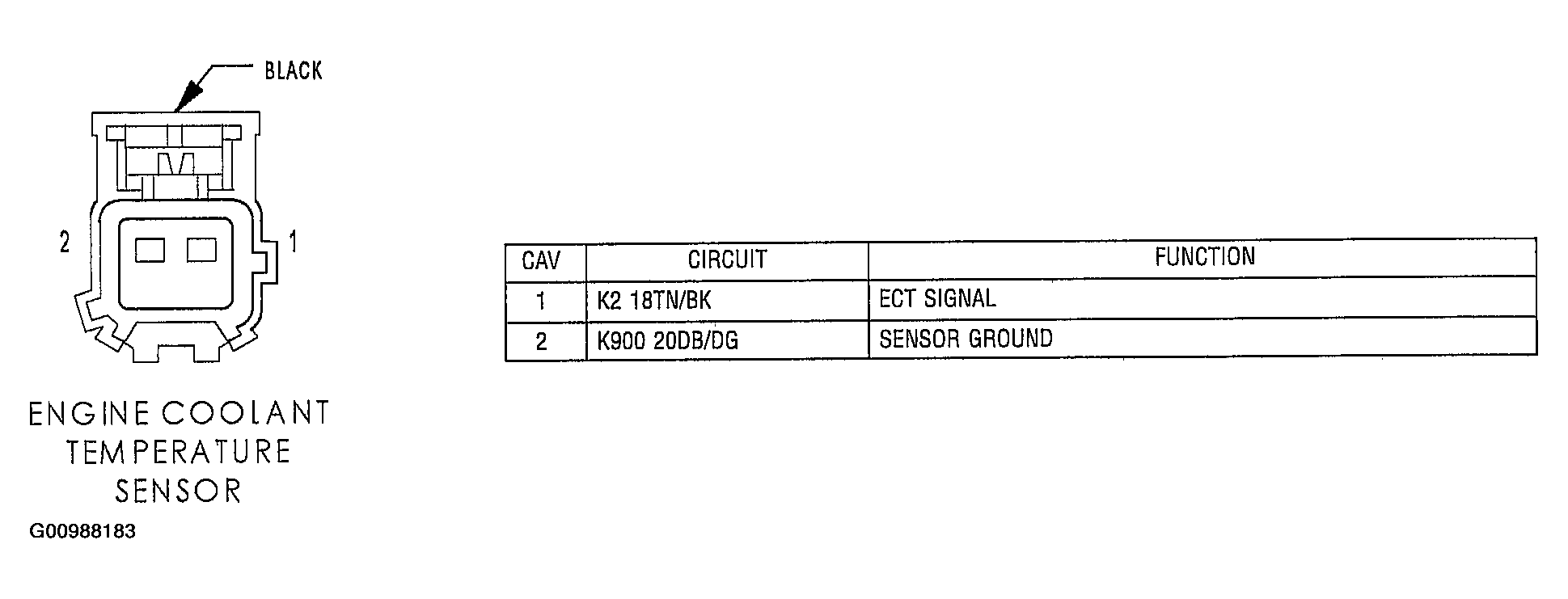

Fig 1: View Of Engine Coolant Temperature Sensor 2 Way Connector Pinouts And Function Description Chart

G00988183

Courtesy of DAIMLERCHRYSLER CORP.
