Clutch Interlock Switch - DK.Green 2 Way

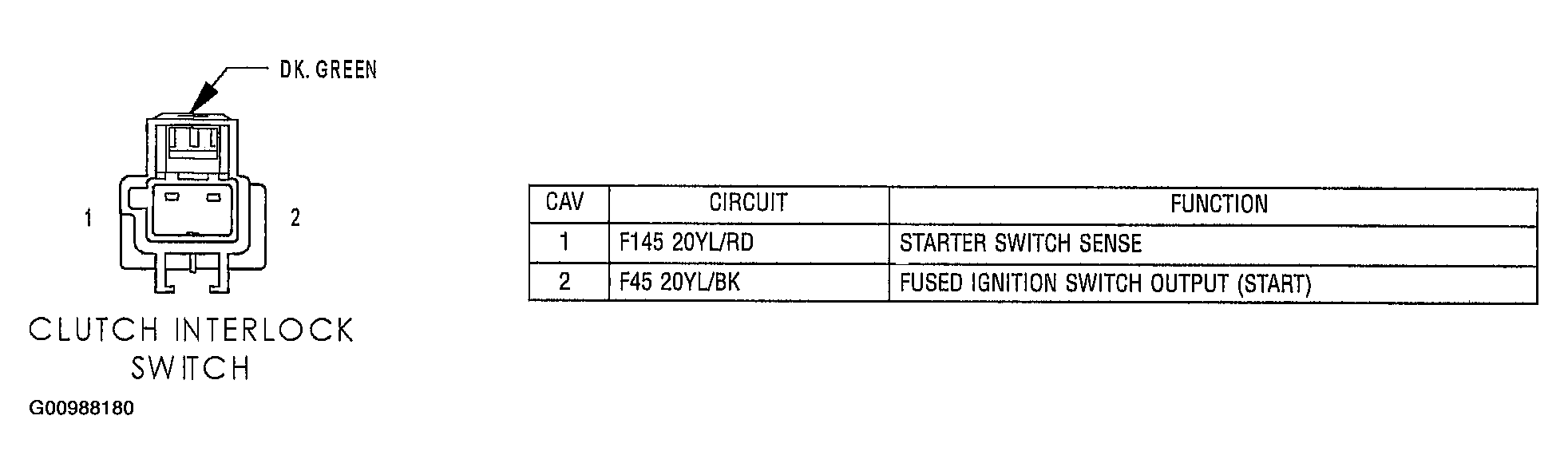

Fig 1: View Of Clutch Interlock Switch 2 Way Connector Pinouts And Function Description Chart

G00988180

Courtesy of DAIMLERCHRYSLER CORP.
