Power Window System

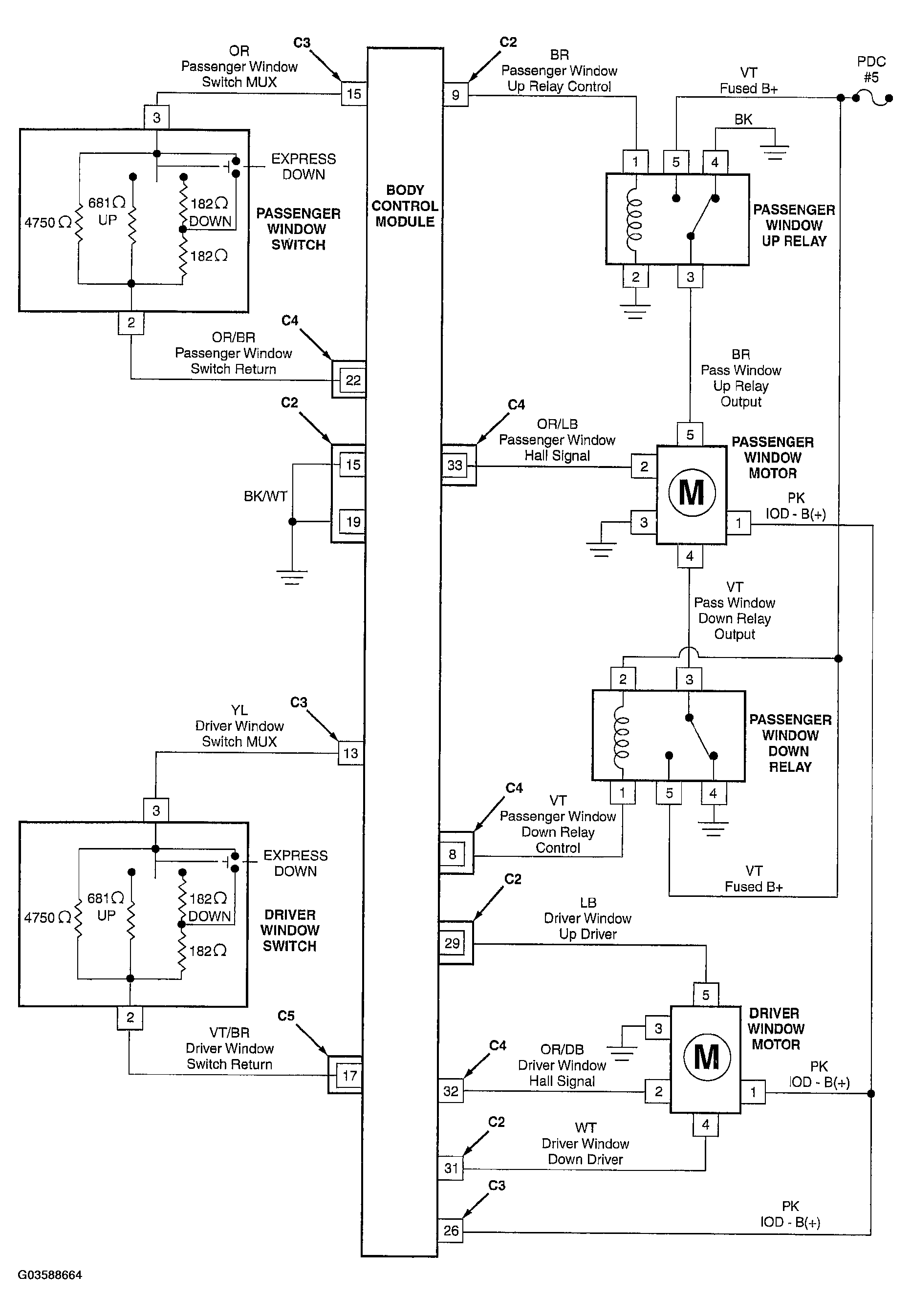

Fig 1: Power Window System Schematic Diagram

G03588664

Courtesy of DAIMLERCHRYSLER CORP.
