Remote Keyless Entry Module - Black 6 Way

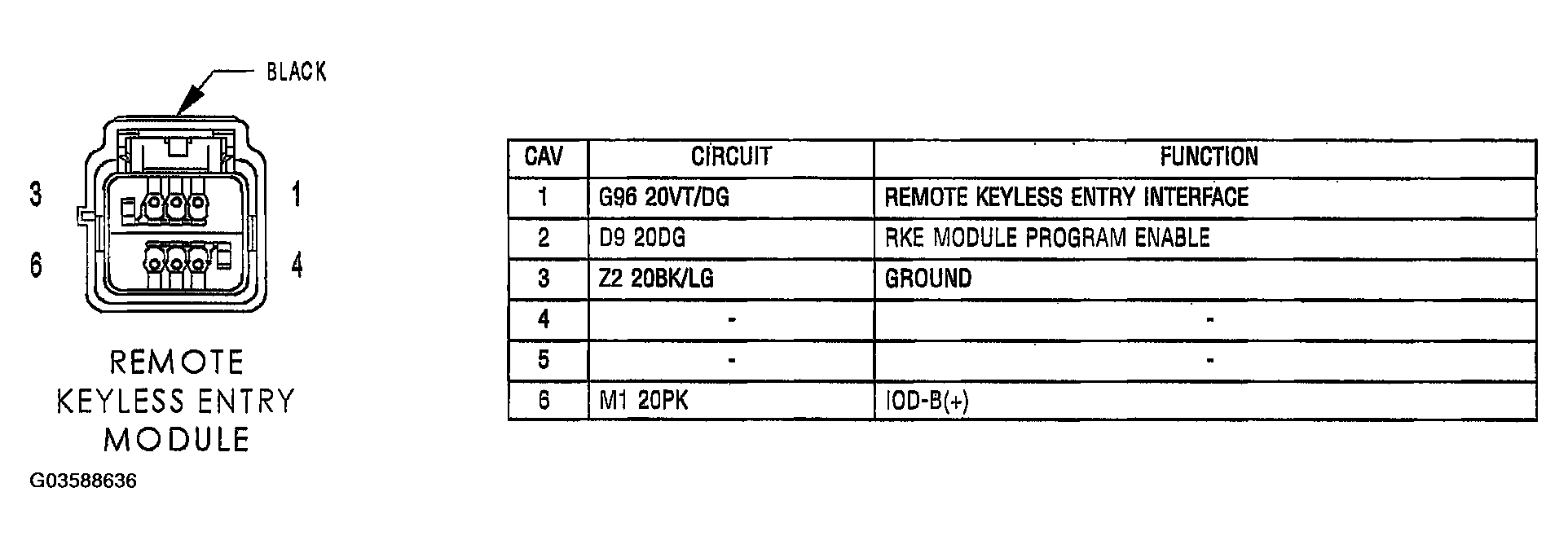

Fig 1: Identifying Remote Keyless Entry Module Connector Pinouts

G03588636

Courtesy of DAIMLERCHRYSLER CORP.
