Powertrain Control Module C3 - Black/Gray 32 Way

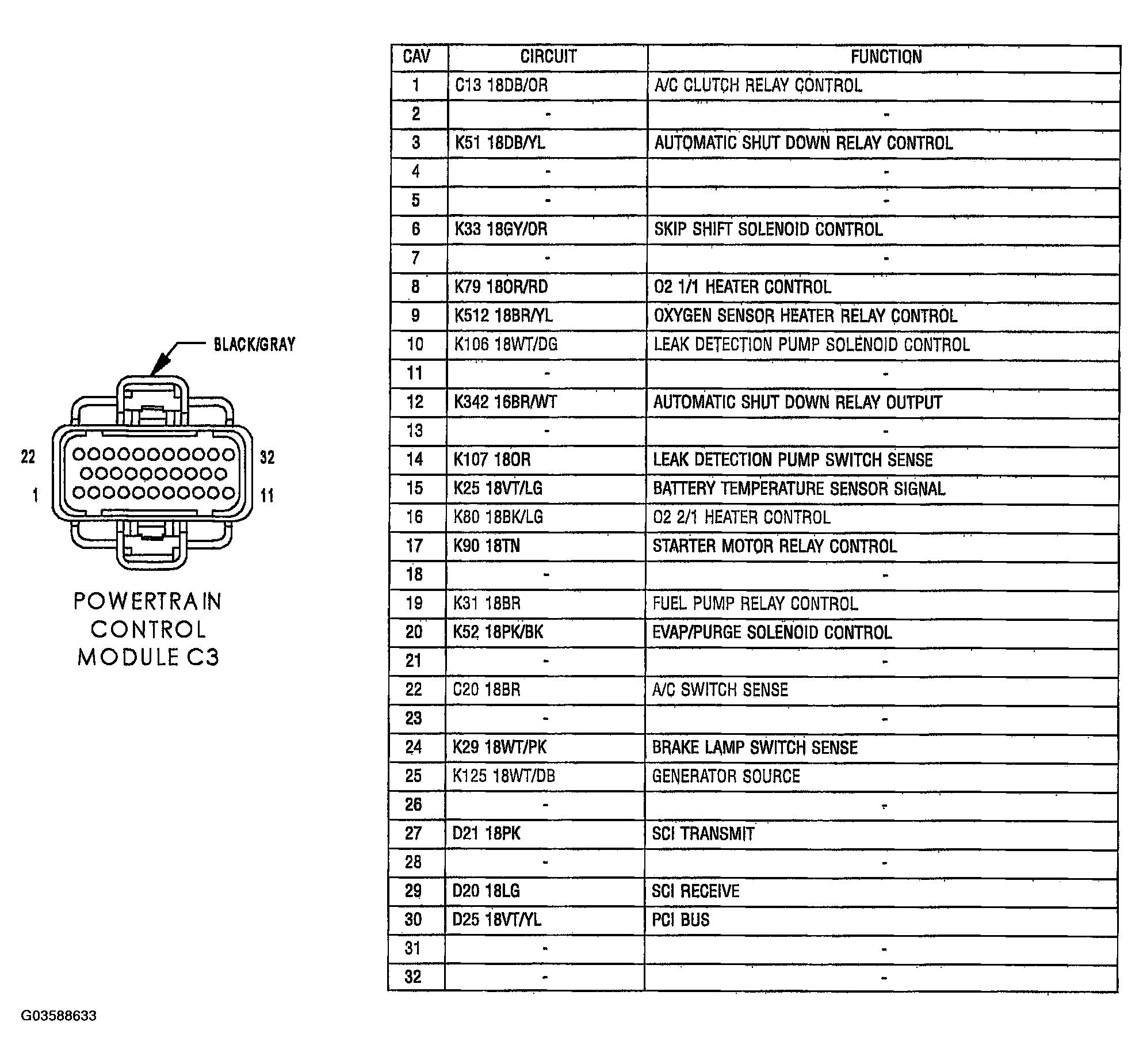

Fig 1: Identifying Powertrain Control Module C3 Connector Pinouts

G03588633

Courtesy of DAIMLERCHRYSLER CORP.
