Multi-Function Switch - Gray 20 Way

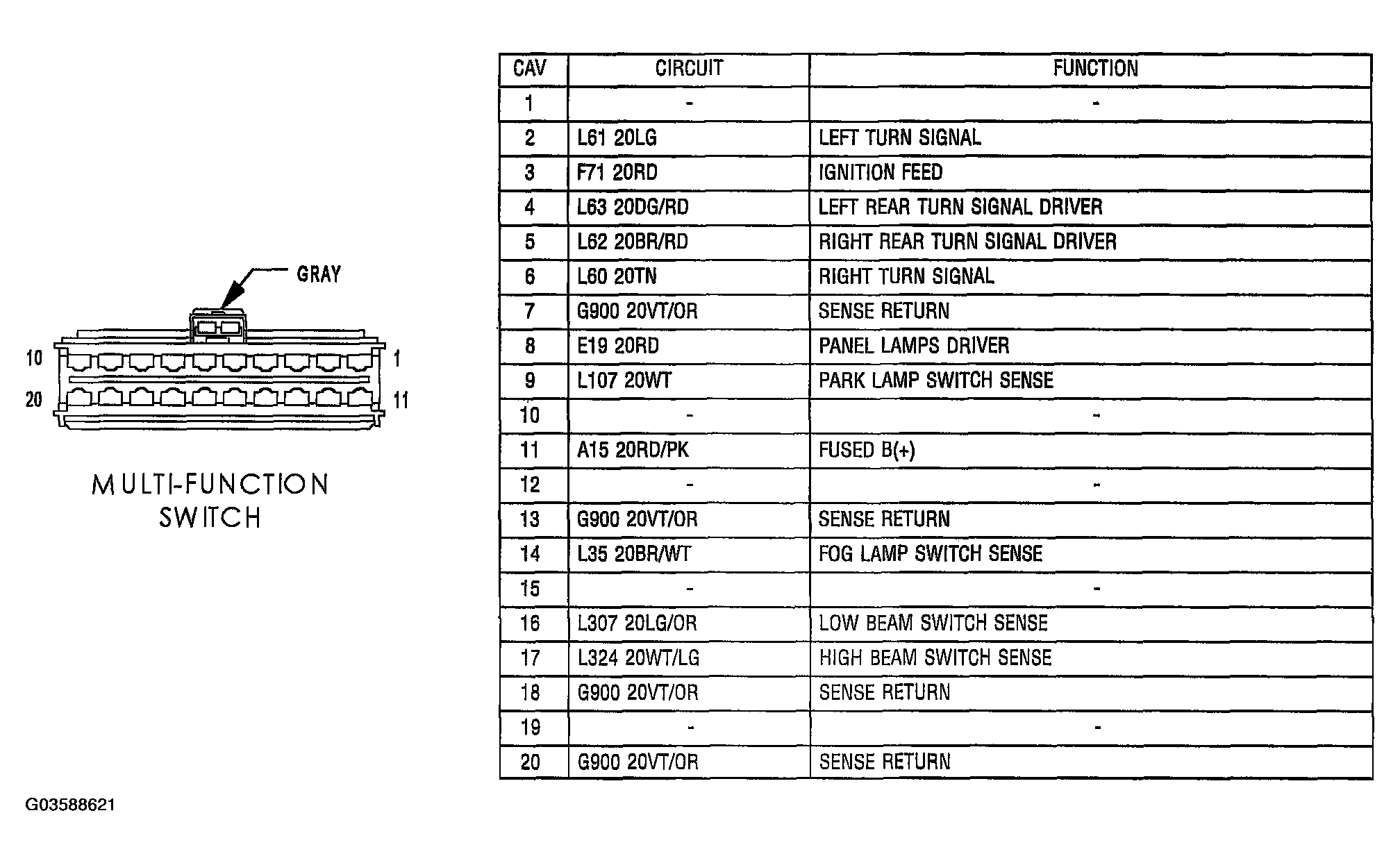

Fig 1: Identifying Multi-Function Switch Connector Pinouts

G03588621

Courtesy of DAIMLERCHRYSLER CORP.
