Multi-Function Switch - Gray 20 Way Connector End View

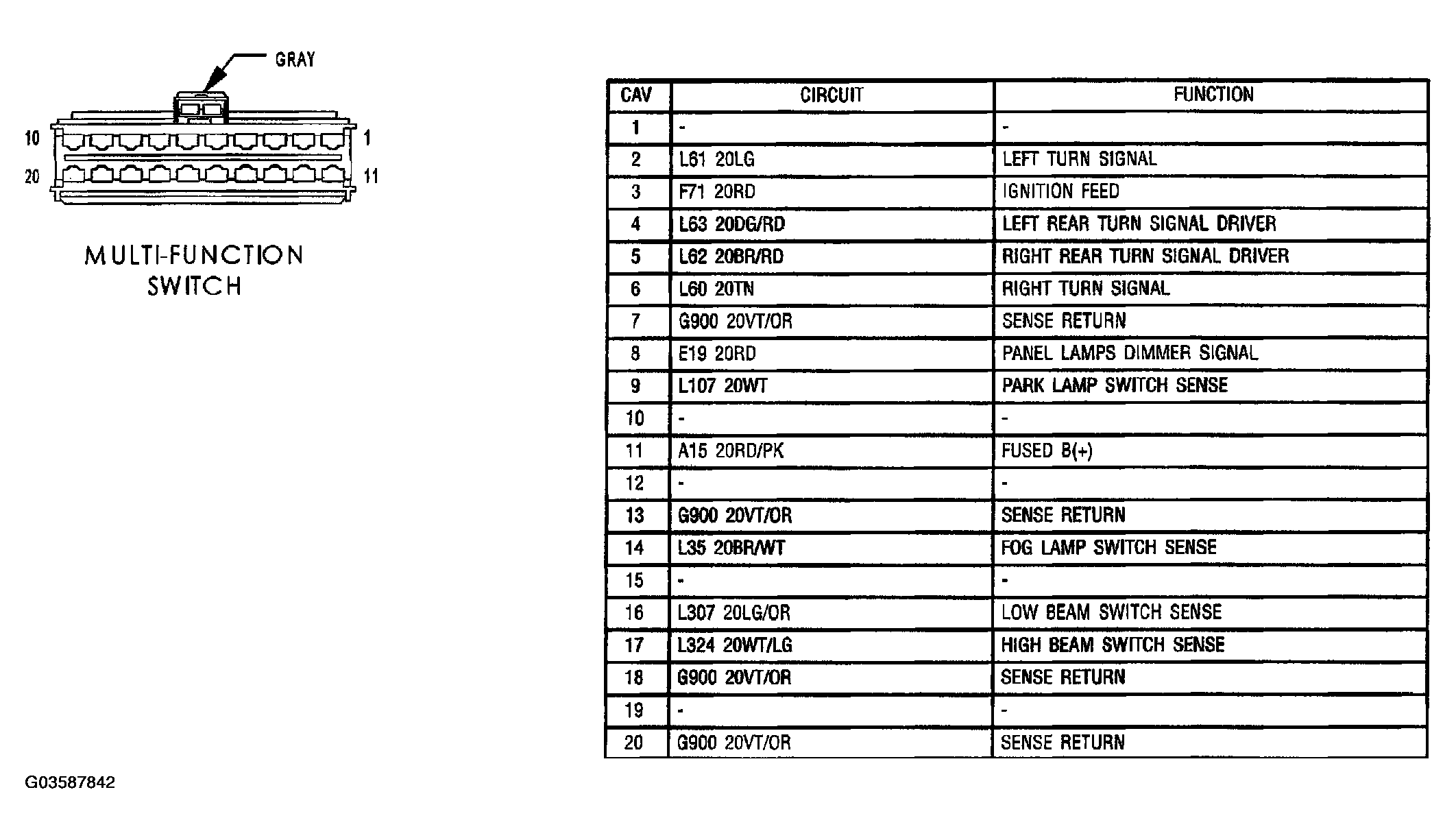

Fig 1: Multifunction Switch Connector End View

G03587842

Courtesy of DAIMLERCHRYSLER CORP.
