Remote Keyless Entry Module Connector End View

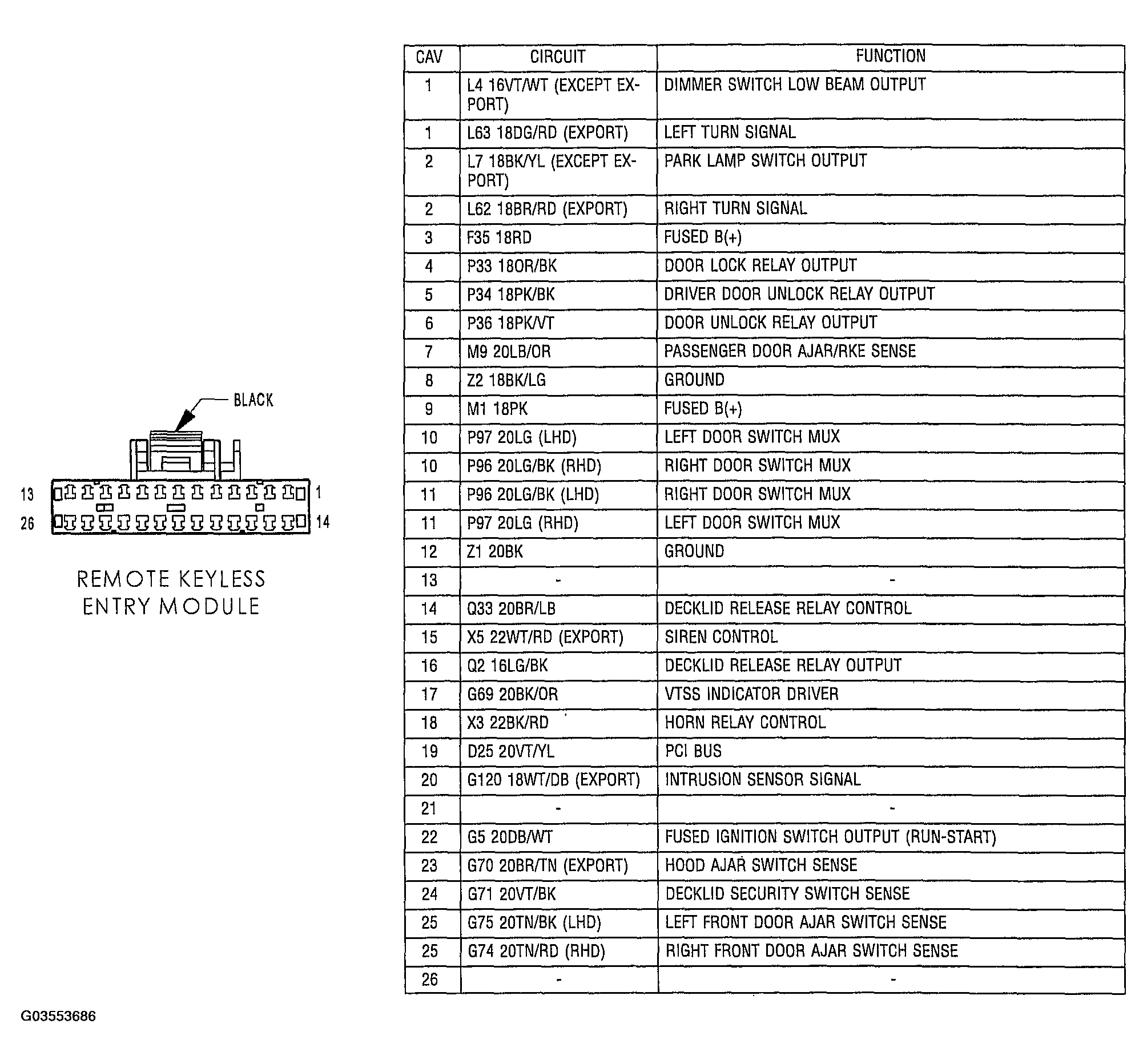

Fig 1: Identifying Remote Keyless Entry Module Connector Terminals And Specifications (Black 26-Way)

G03553686

Courtesy of DAIMLERCHRYSLER CORP.
