Airbag Control Module Connector End View

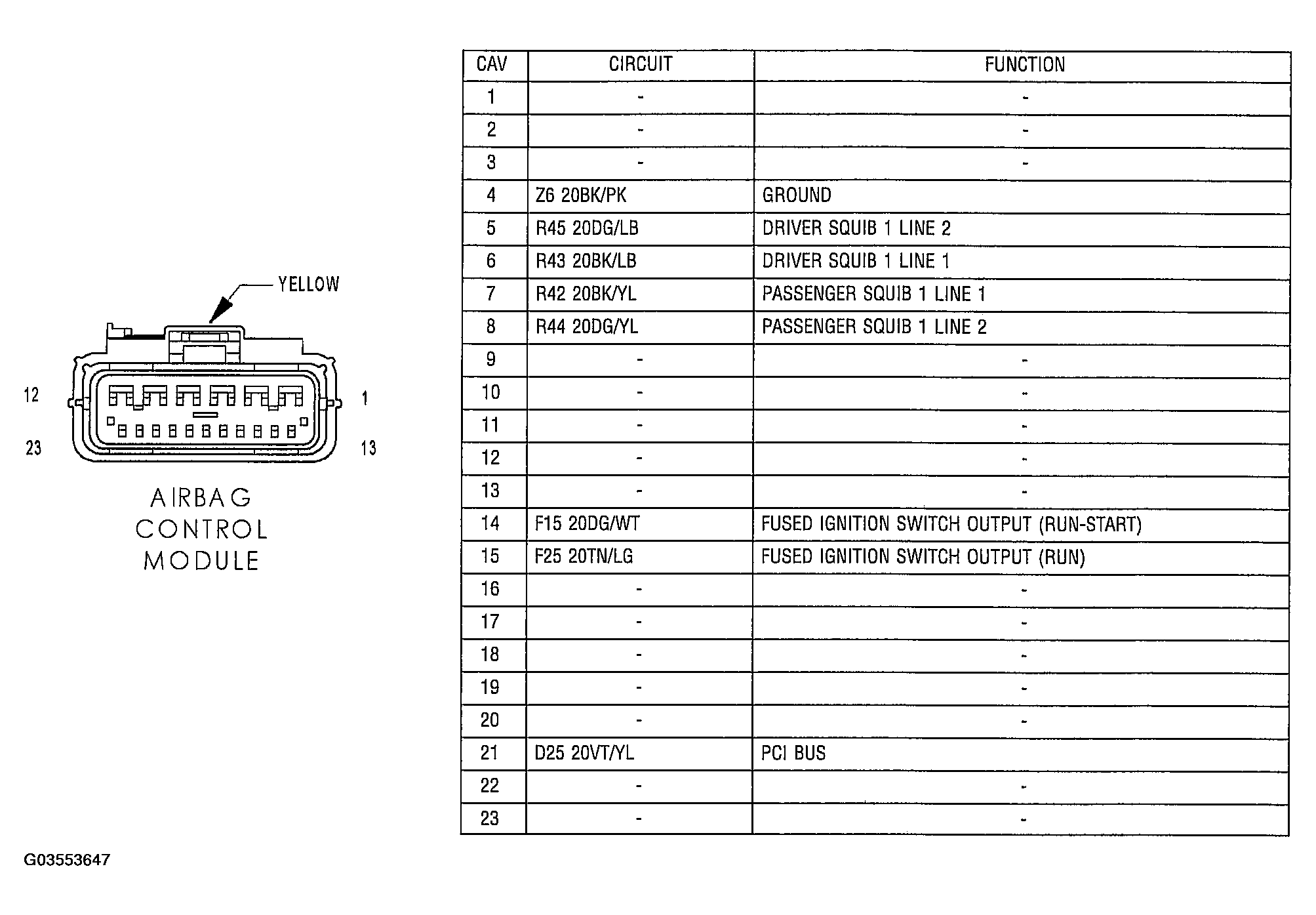

Fig 1: Identifying Airbag Control Module Connector Terminals And Specifications (Yellow 23-Way)

G03553647

Courtesy of DAIMLERCHRYSLER CORP.
