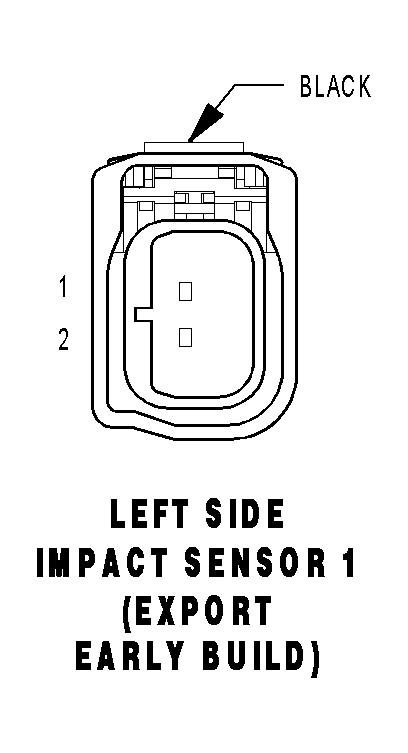

Left Side Impact Sensor 1 (Export Early Build) Connector End View
LEFT SIDE IMPACT SENSOR 1 (EXPORT EARLY BUILD) - BLACK 2 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
R15 20DB (EXCEPT RHD LWB) |
LEFT SIDE IMPACT SENSOR 1 GROUND |
| 1 |
R15 20LB (RHD LWB) |
LEFT SIDE IMPACT SENSOR 1 GROUND |
| 2 |
R13 20LB |
LEFT SIDE IMPACT SENSOR 1 SIGNAL |
