Switch-Transfer Case Selector Connector End View

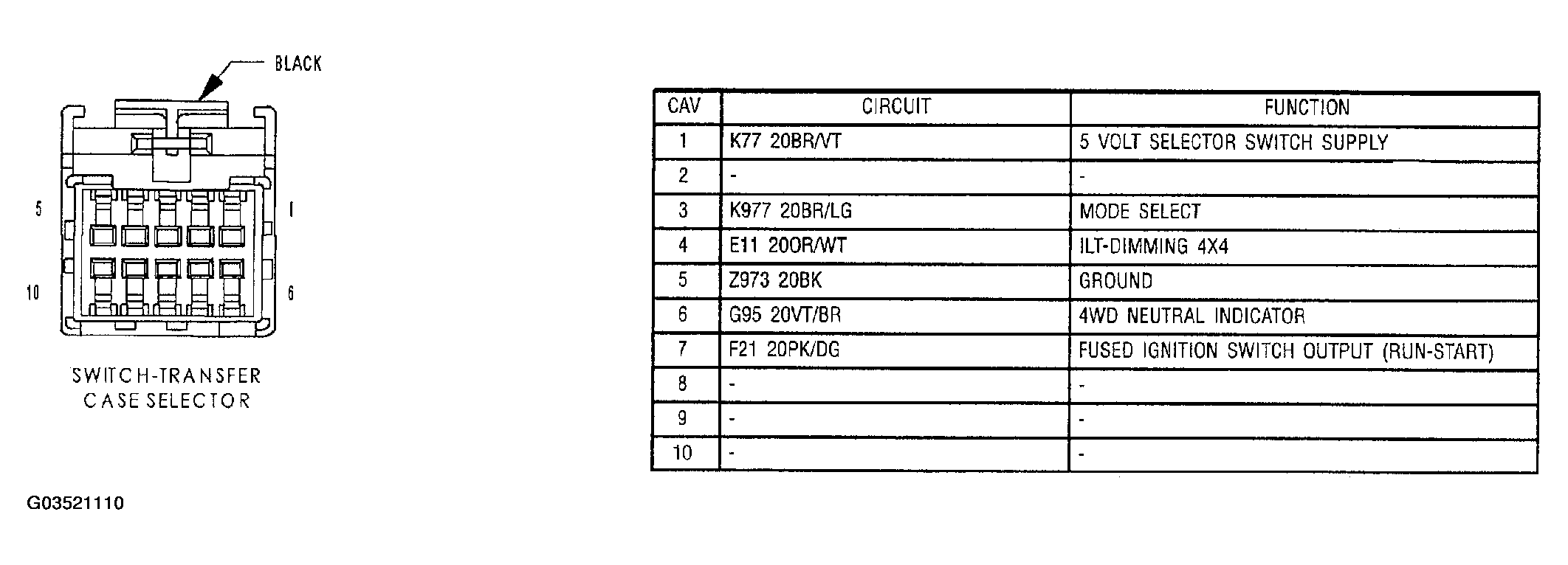

Fig 1: Transfer Case Selector Switch Connector End View

G03521110

Courtesy of DAIMLERCHRYSLER CORP.
