Sensor-Transmission Range (3.7L) Connector End View

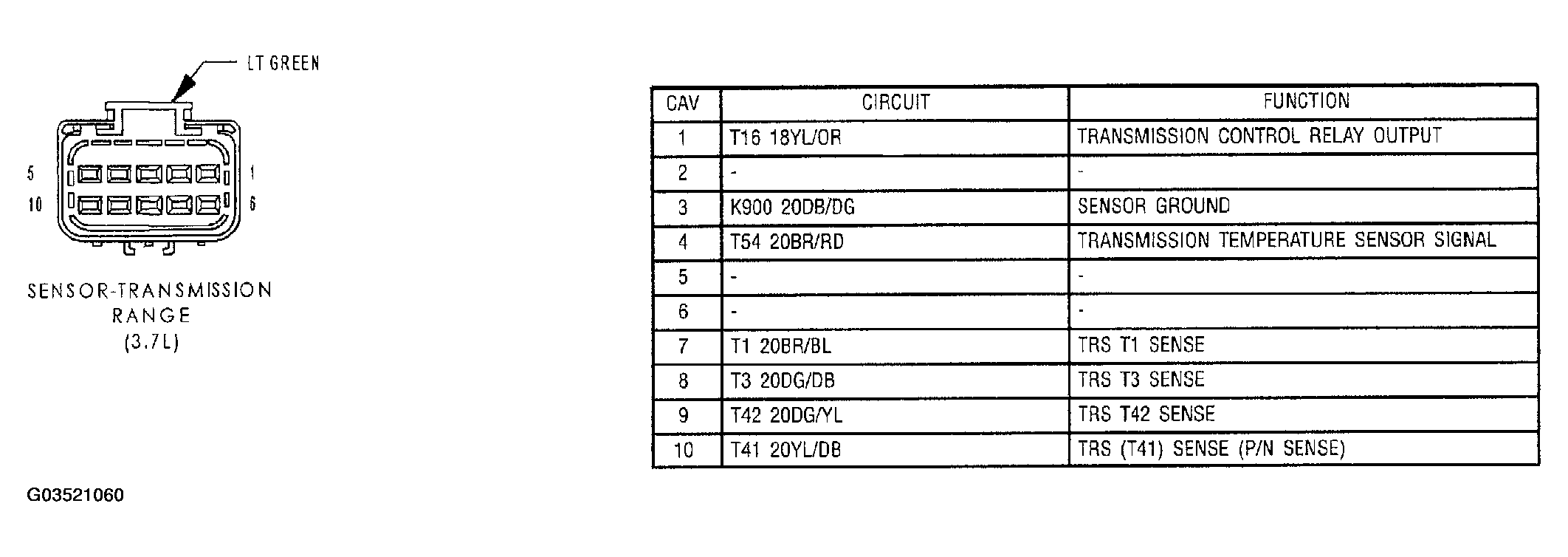

Fig 1: Transmission Range Sensor (3.7L) Connector End View

G03521060

Courtesy of DAIMLERCHRYSLER CORP.
