Sensor-Side Impact-Right 1 Connector End View

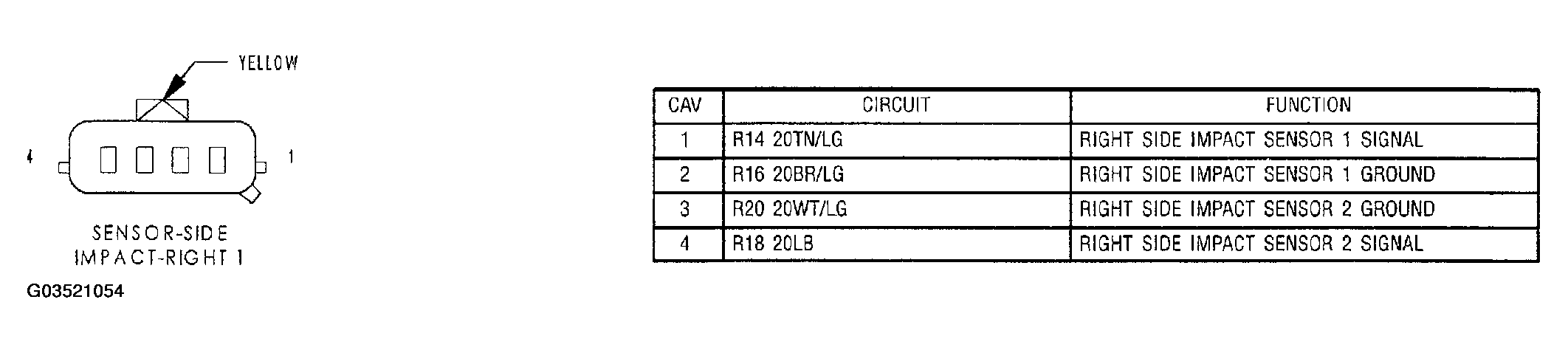

Fig 1: Right Side Impact Sensor 1 Connector End View

G03521054

Courtesy of DAIMLERCHRYSLER CORP.
