Sensor-Battery Temperature Connector End View

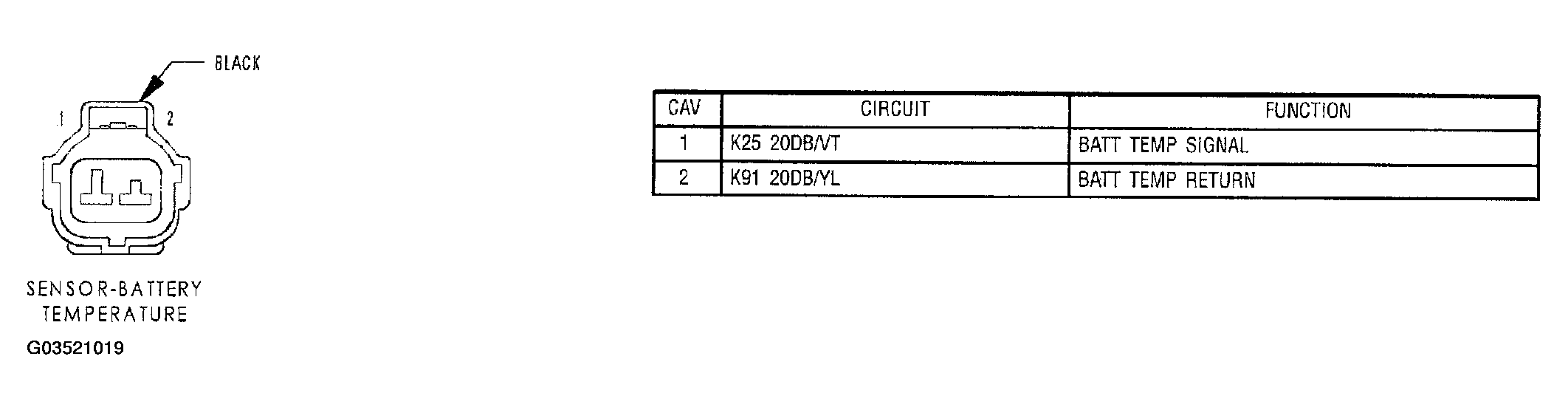

Fig 1: Battery Temperature Sensor Connector End View

G03521019

Courtesy of DAIMLERCHRYSLER CORP.
