Module-Power Distribution C1 Connector End View

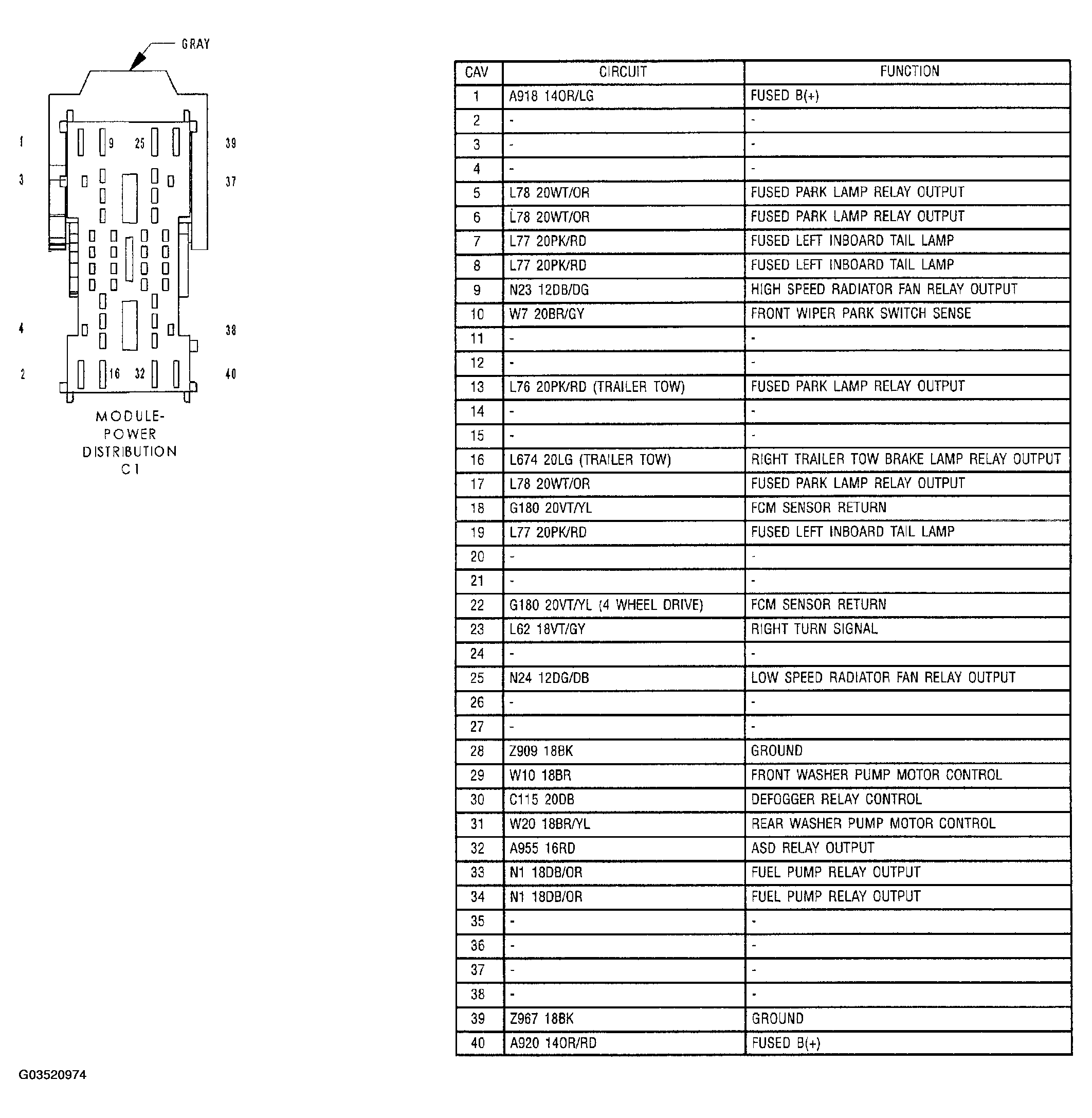

Fig 1: Power Distribution Module (Headlamp/ Dash Side ) Connector End View (C1)

G03520974

Courtesy of DAIMLERCHRYSLER CORP.
