Module-Occupant Restraint Controller C1 Connector End View

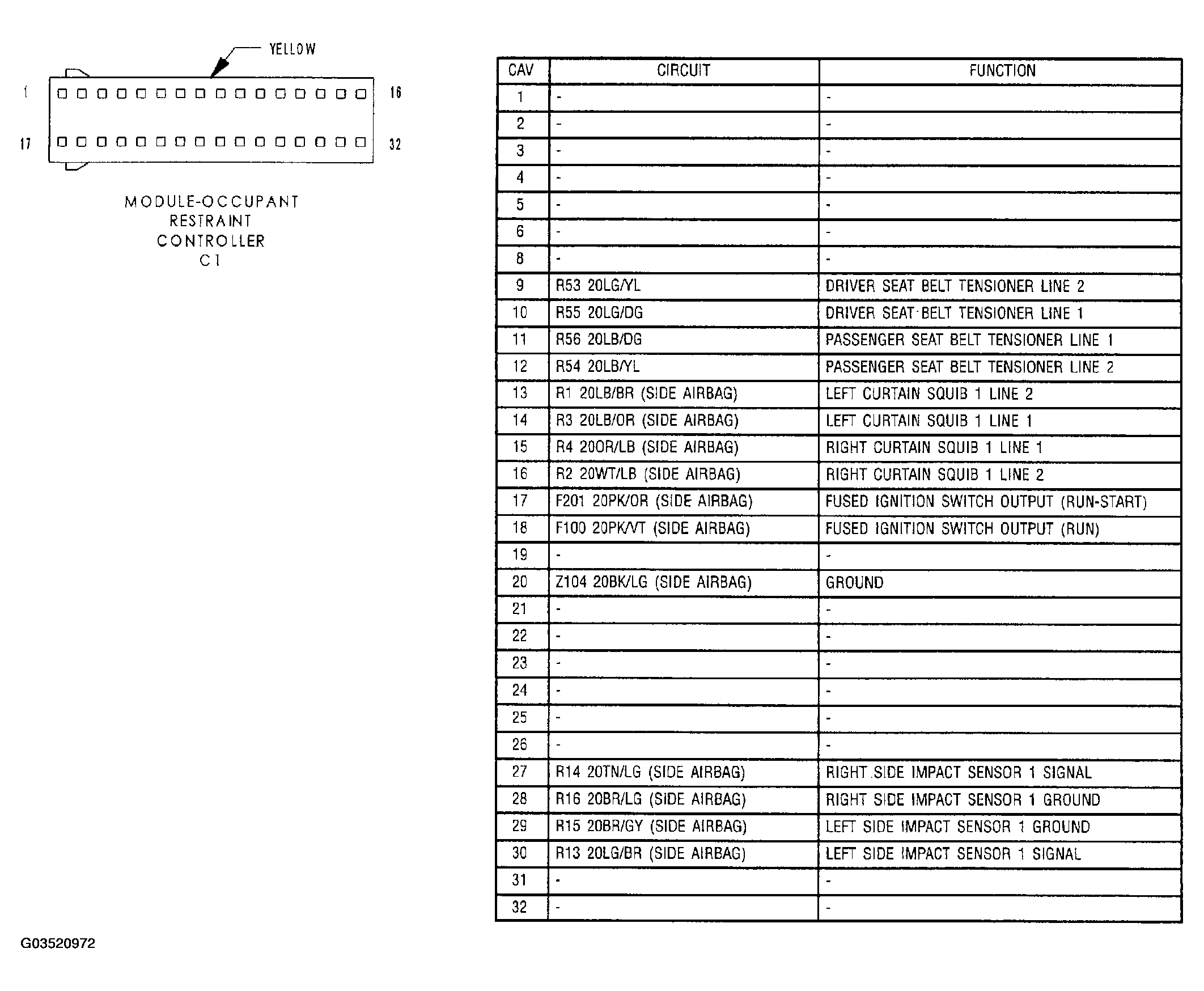

Fig 1: Occupant Restraint Controller Module Connector End View

G03520972

Courtesy of DAIMLERCHRYSLER CORP.
